DB4402-V2

High-Performance Dual FM Monitoring Receiver & Radio Streamer

Logger capability and simultaneous audio streaming in one innovative tool

The DB4402-V2 - Dual FM Monitoring Receiver is a superb and highly practical combination between a logger and a streamer which allows you to easily and accurately monitor and store all important parameters of the FM signal while simultaneously giving you the opportunity to listen to a constant, uninterrupted audio stream. The synchronized performance of both major functions is at the core of the idea for this model, as well as the unit’s major asset.

The DB4402-V2 is fully DSP-based, with a built-in oscilloscope and an RDS/RBDS decoder with a BER meter. Users can set alarms for RF, MPX, Pilot and RDS signal via email, SMS or SNMP. The DB4402-V2 is an advanced solution giving customers a number of advantages and top all-round, multi-faceted performance as both a monitoring tool and a streaming device.

Logger capability and simultaneous audio streaming in one innovative tool

Fully DSP based core

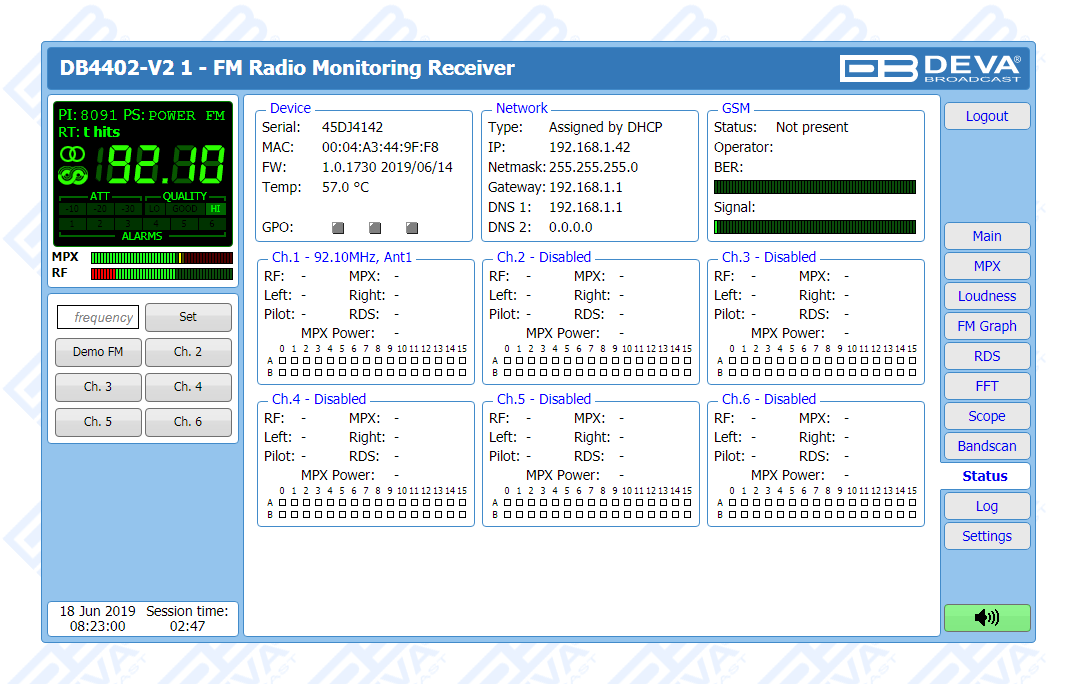

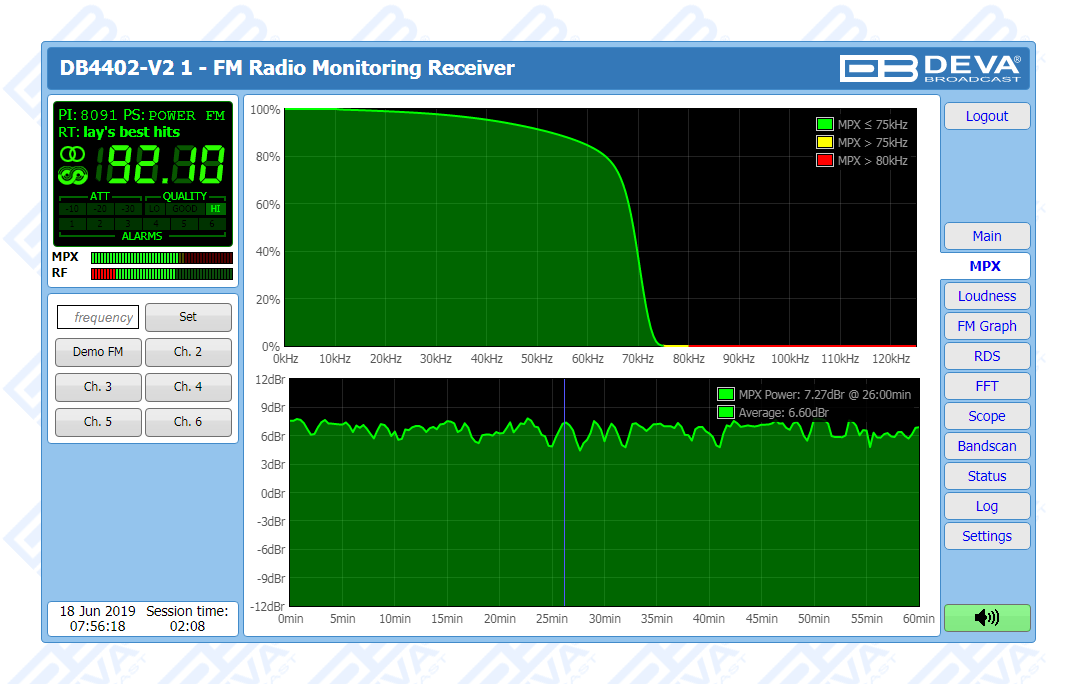

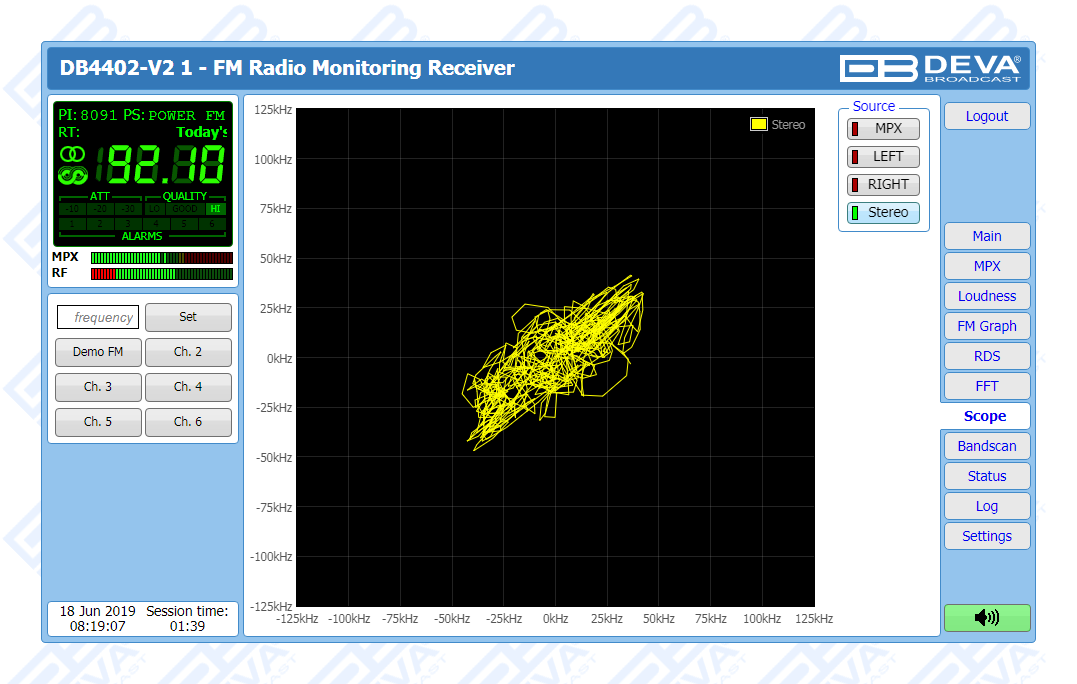

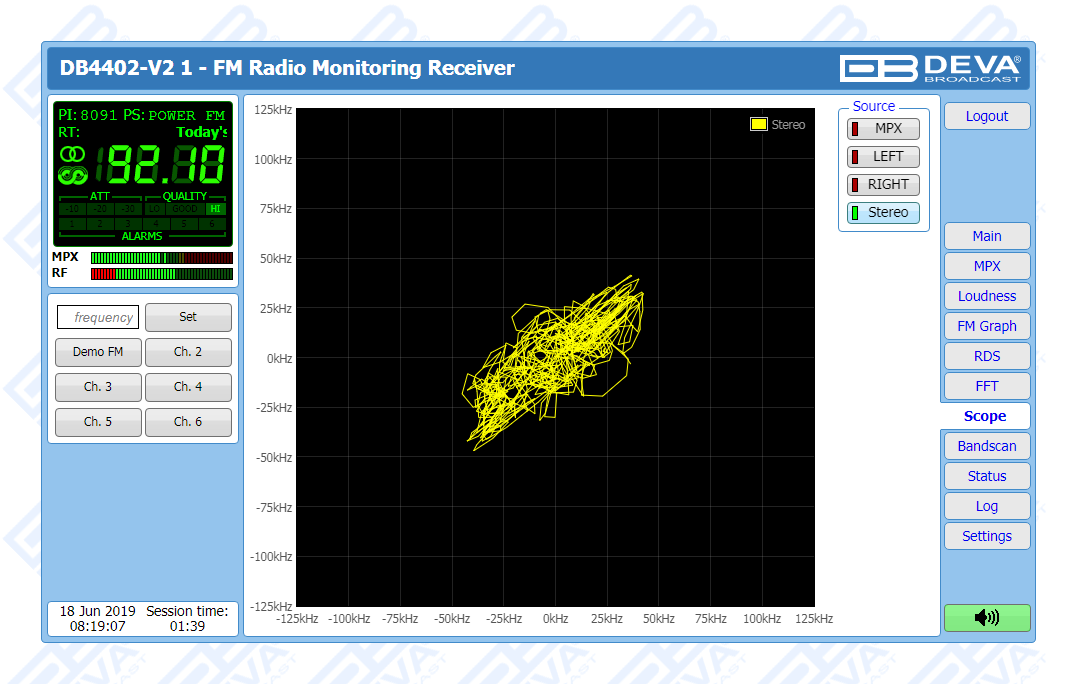

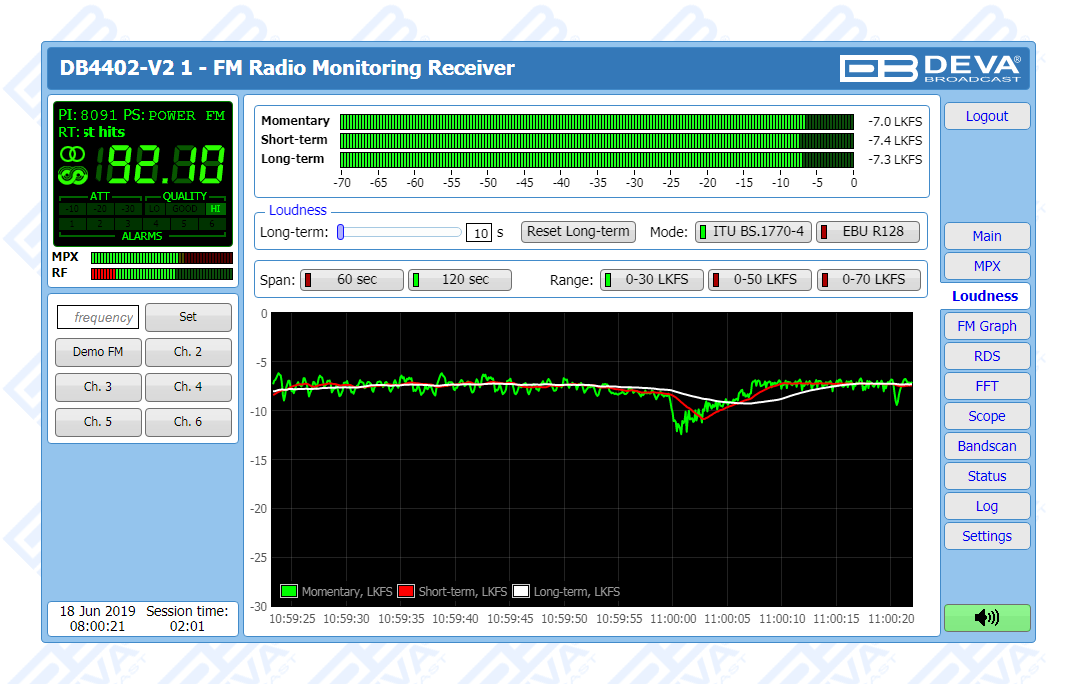

Built-in Oscilloscope allowing Left, Right and MPX display

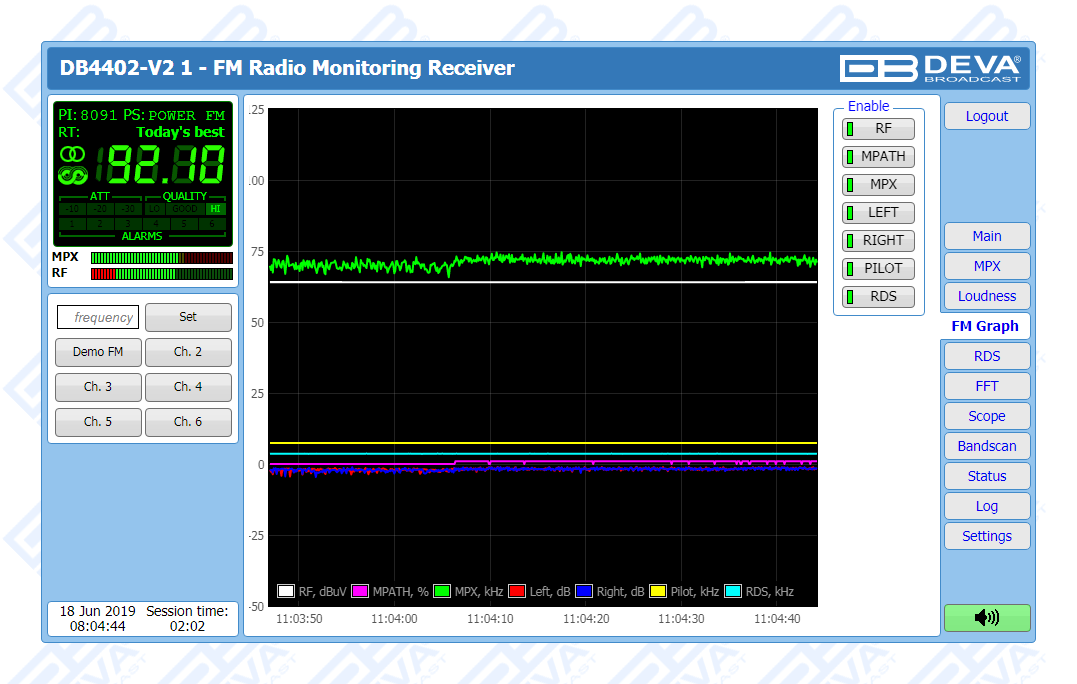

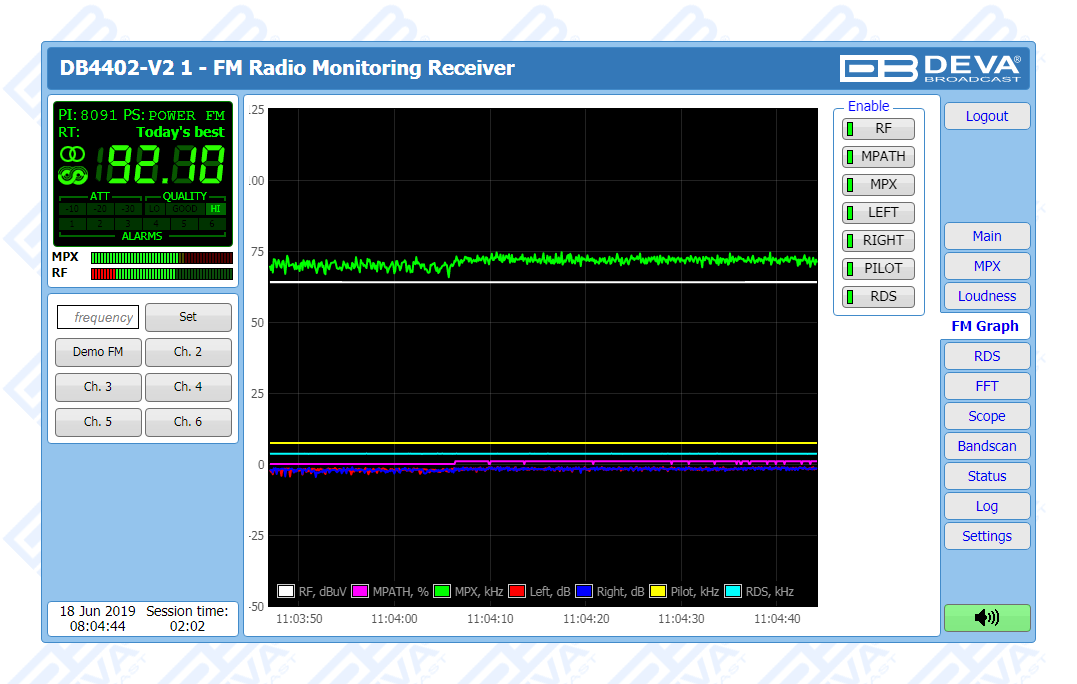

MPX Power measurement with data history
RF Spectrum analyzer allowing to check the RF Carrier parameters

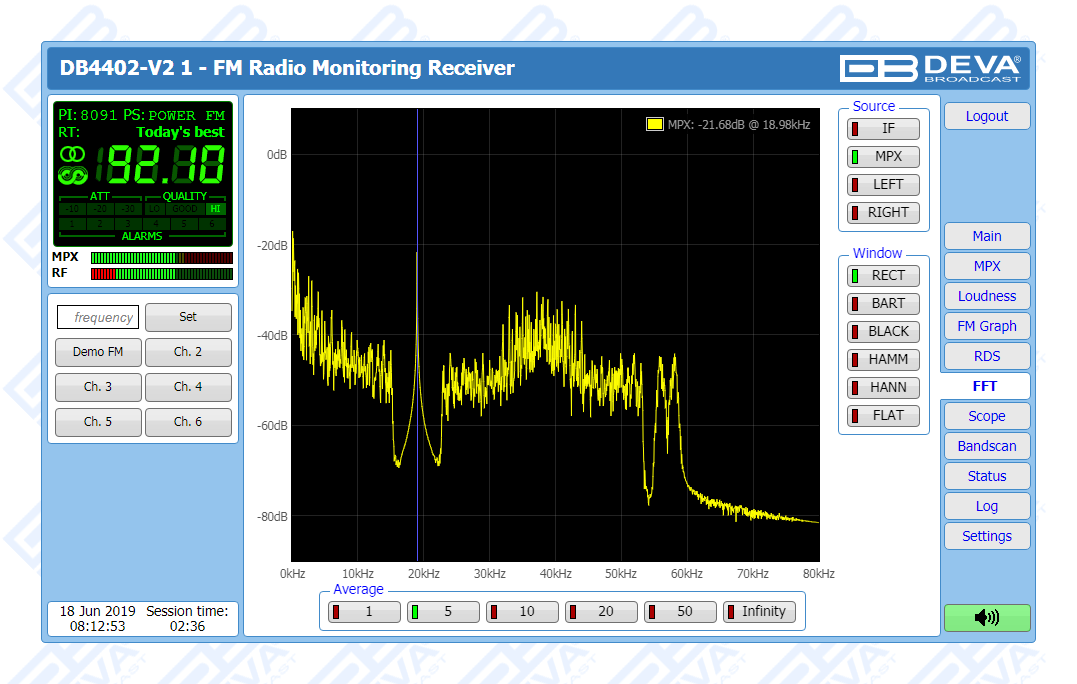

MPX Spectrum analyzer for Left, Right and MPX measurements

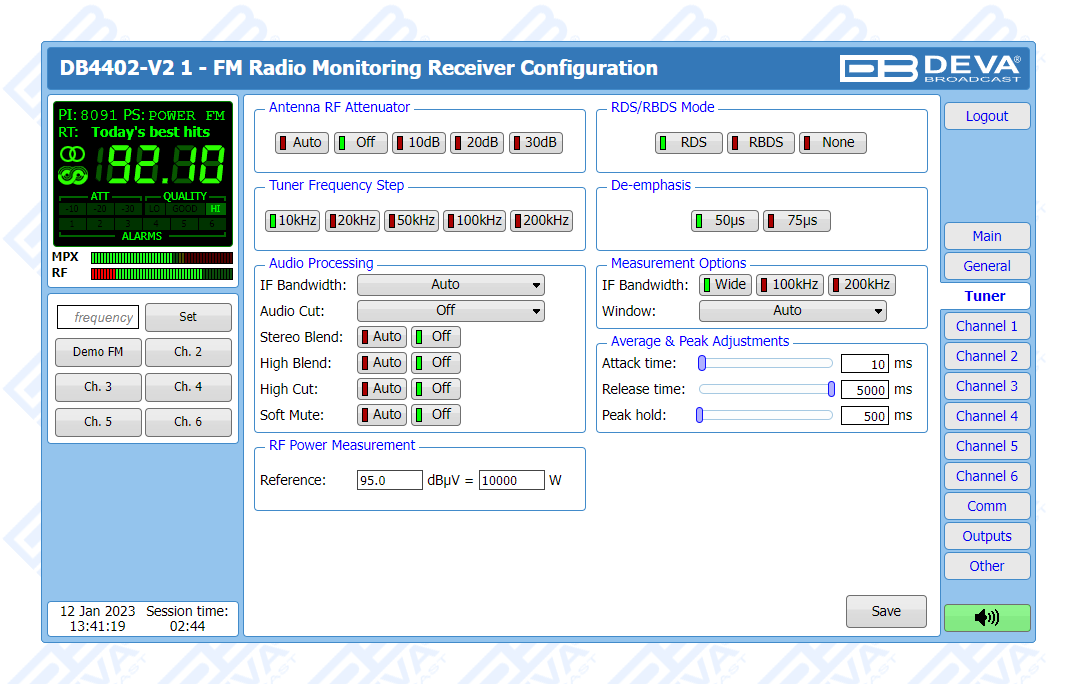

Selectable De-emphasis – 50µs and 75µs
Built-in Stereo Decoder; Stereo Presence Detection

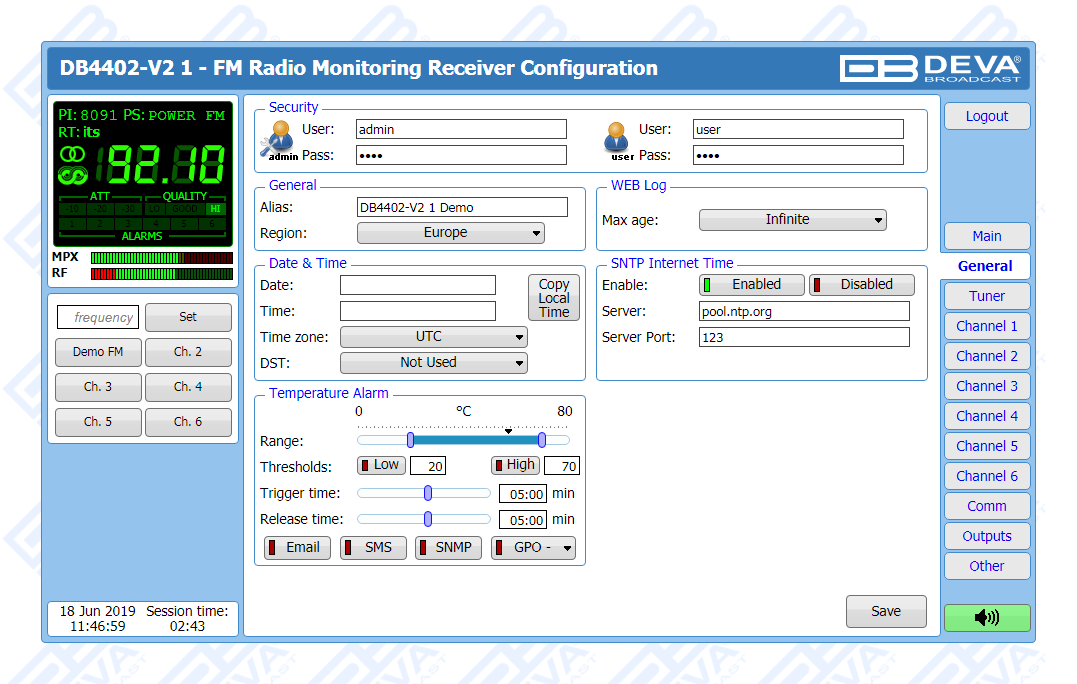

Date & Time Settings with various formats
LAN port for full TCP/IP remote control and monitoring
Up to 90dBµV direct RF Antenna Input

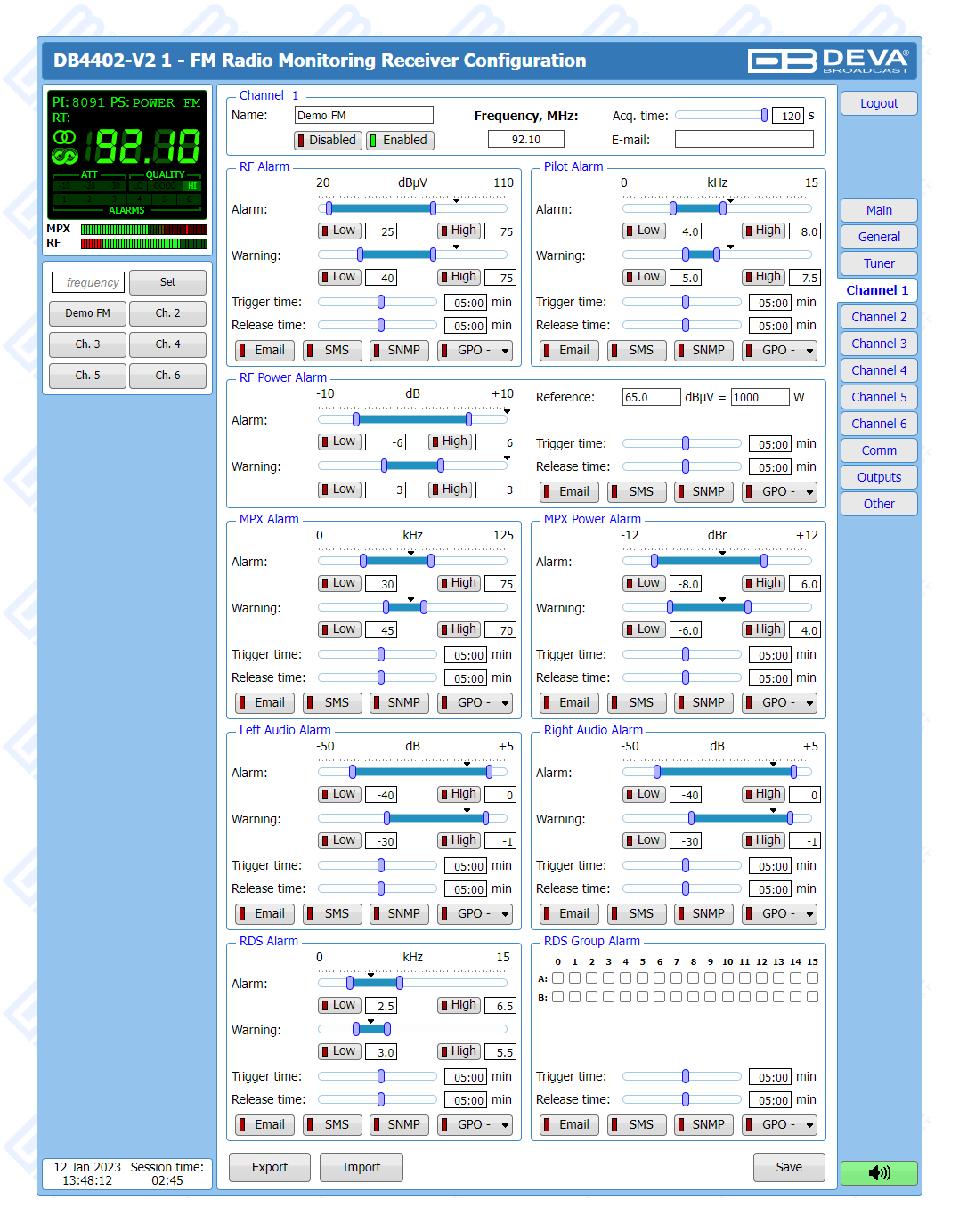

Adjustable alarms for RF, Deviation, Pilot and RDS signal
Firmware update for future-proof operation
Parameters Factory Restore Option

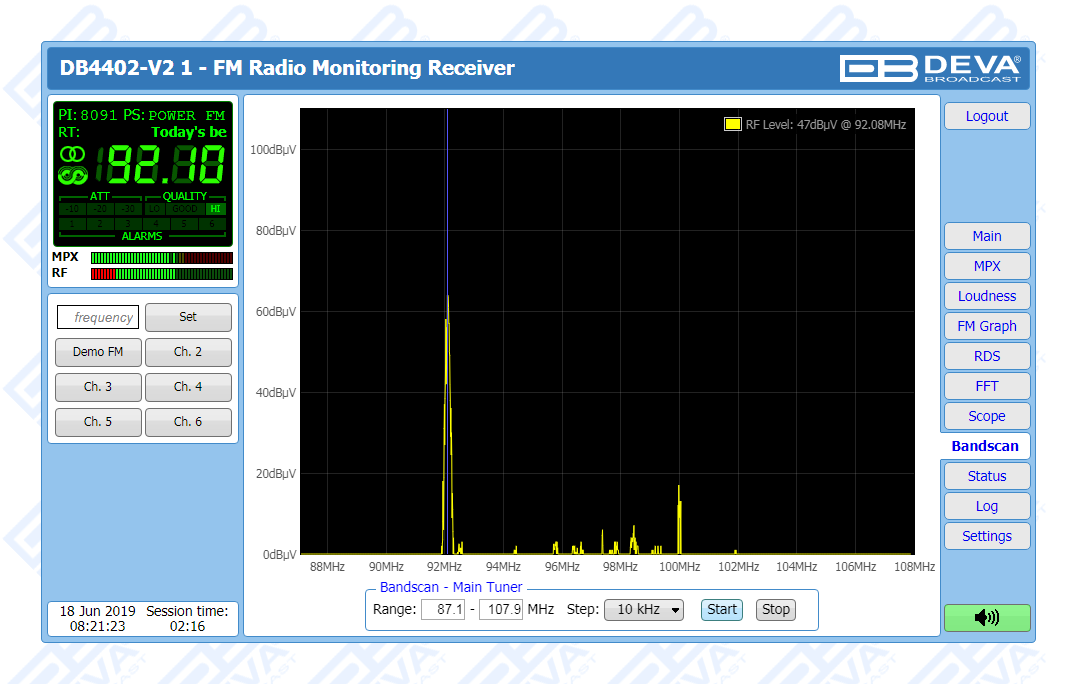

FM Band 87 - 108 MHz Basic Spectrum Analyzer
MPX, PILOT & RDS deviation meters

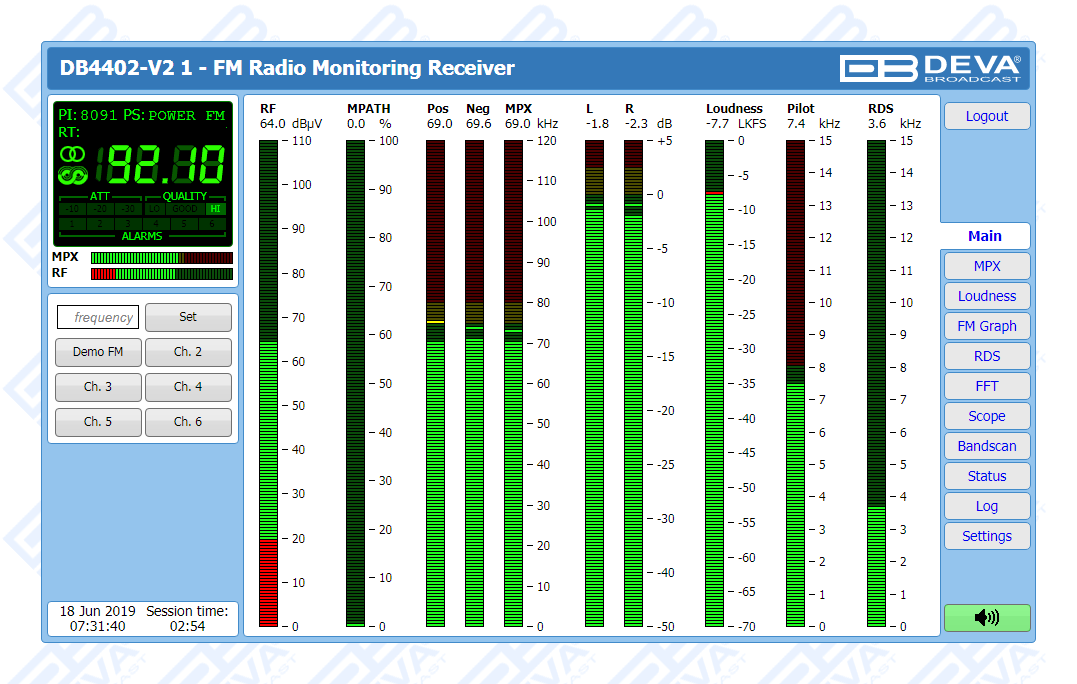

LEFT and RIGHT demodulated audio level meters
Headphones audio output

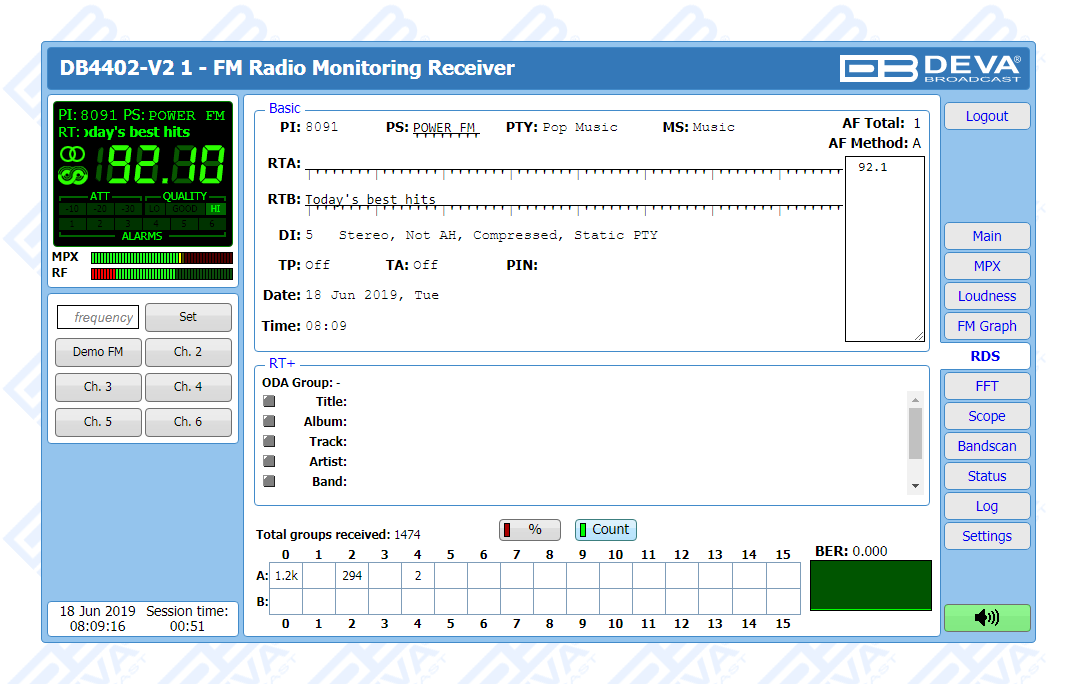

RDS and RBDS decoder with BER meter

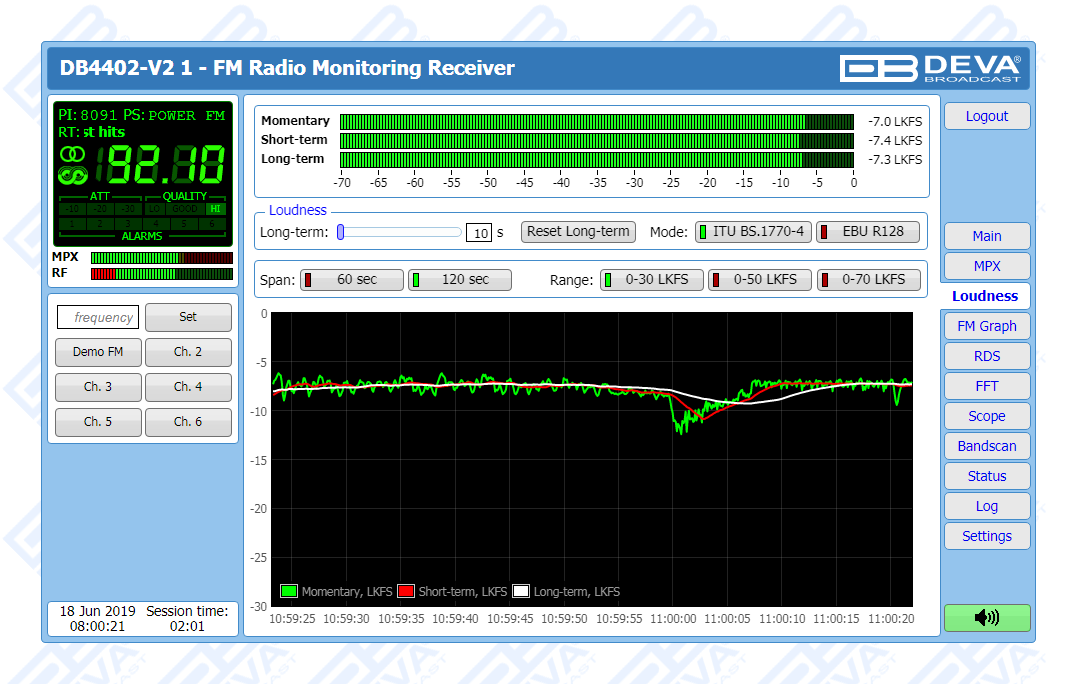

Loudness meter
Alarm dispatch via E-mail, SMS, SNMP
Channel status reporting via SMS

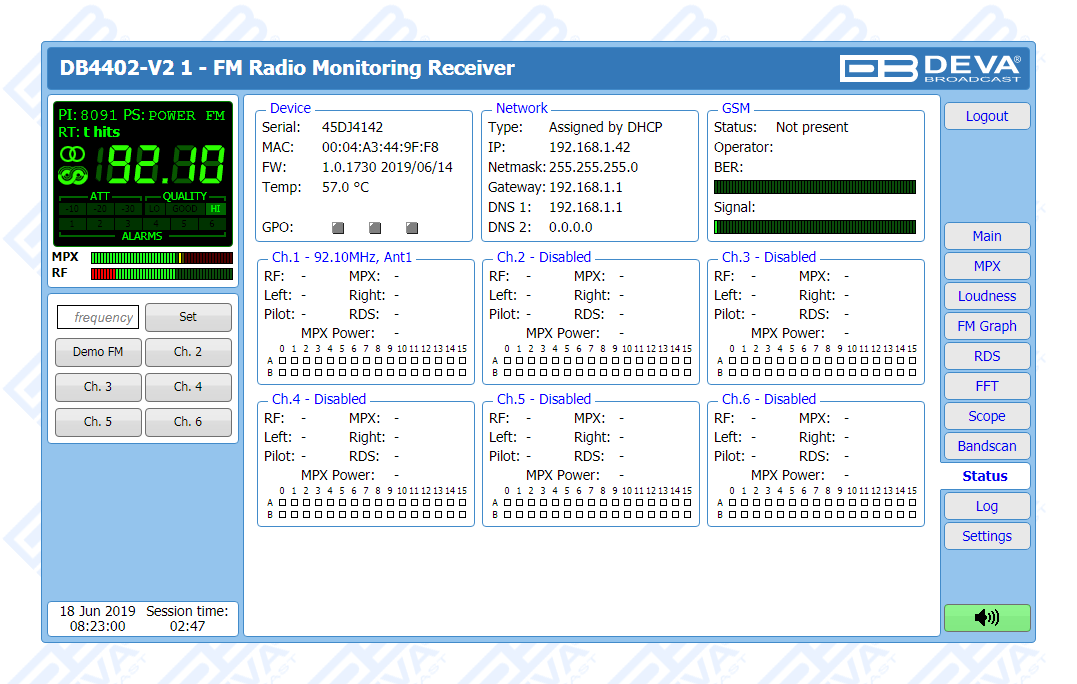

RF and RDS Measurements
Remote Listening via optional GSM modem
Real Time Audio Program Streaming
Attractive price and very good price-performance ratio

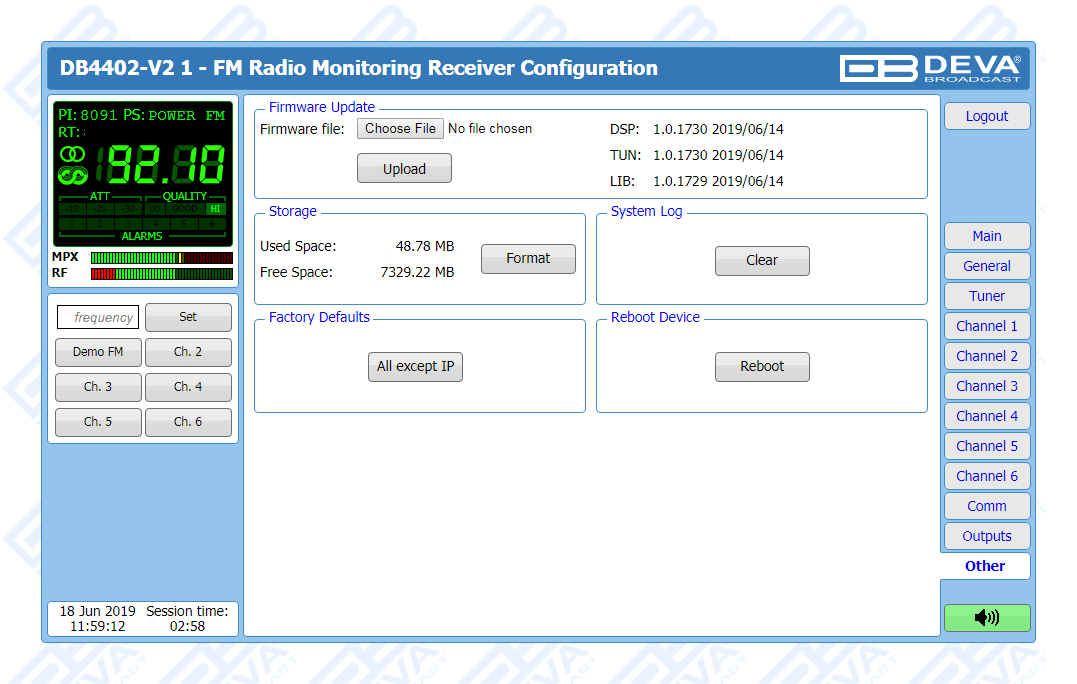

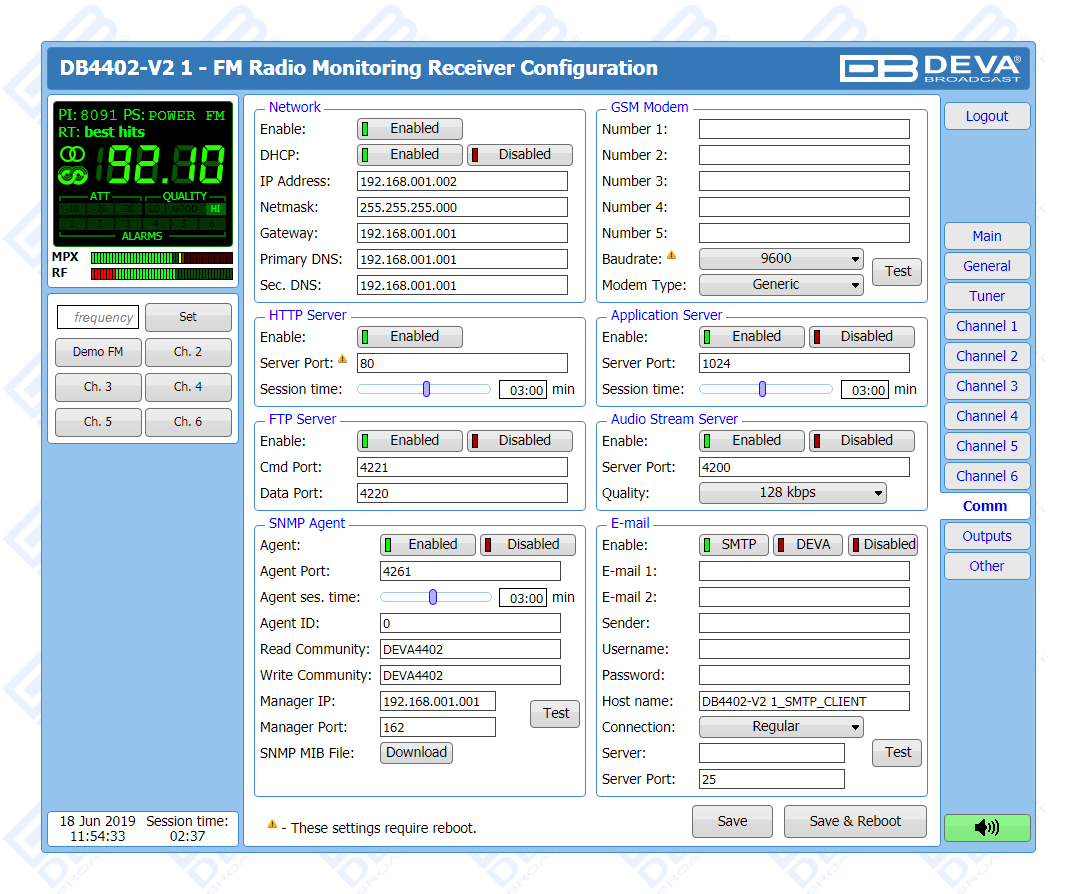

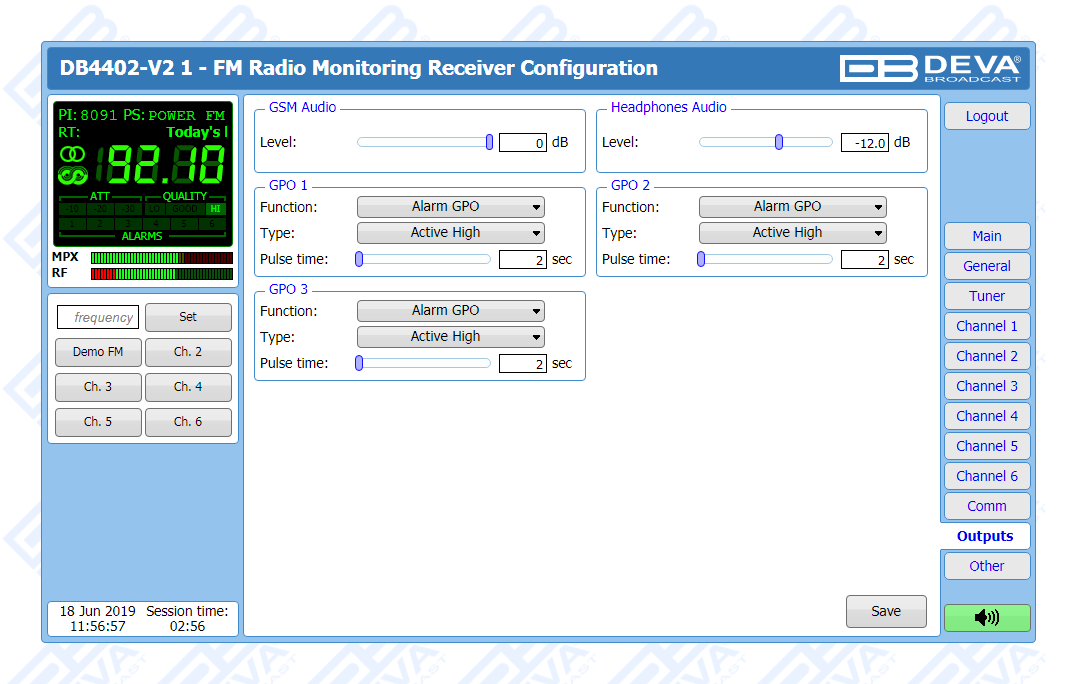

Very Intuitive Embedded WEB server for interactive supervision
Proved and reliable hardware for 24/7/365 operating
Easy Installation and Setup
SNTP for automatic synchronization of the built-in clock
Compact and Robust Aluminum Case for high RF immunity

The DB4402-V2 – Dual FM Monitoring Receiver is a superb and highly practical combination between a logger and a streamer which allows you to easily and accurately monitor and store all important parameters of the FM signal while simultaneously giving you the opportunity to listen to a constant, uninterrupted audio stream. The synchronized performance of both major functions is at the core of the idea for this model, as well as the unit’s major asset. You can listen to the selected audio feed at the same time as the logger campaign is running. The design of this device relies on simplicity coupled with functionality to offer customers the opportunity of a single solution to both tasks.

Providing the stable, dependable operation characterizing all DEVA products, the DB4402-V2 is fully DSP-based, with a built-in oscilloscope and an RDS/RBDS decoder with a BER meter. It also permits users to set alarms for RF, MPX, Pilot and RDS signal via email, SMS or SNMP. What is more, the TCP/IP and GSM connectivity provides easy remote control, monitoring and listening to the radio signal from any location.

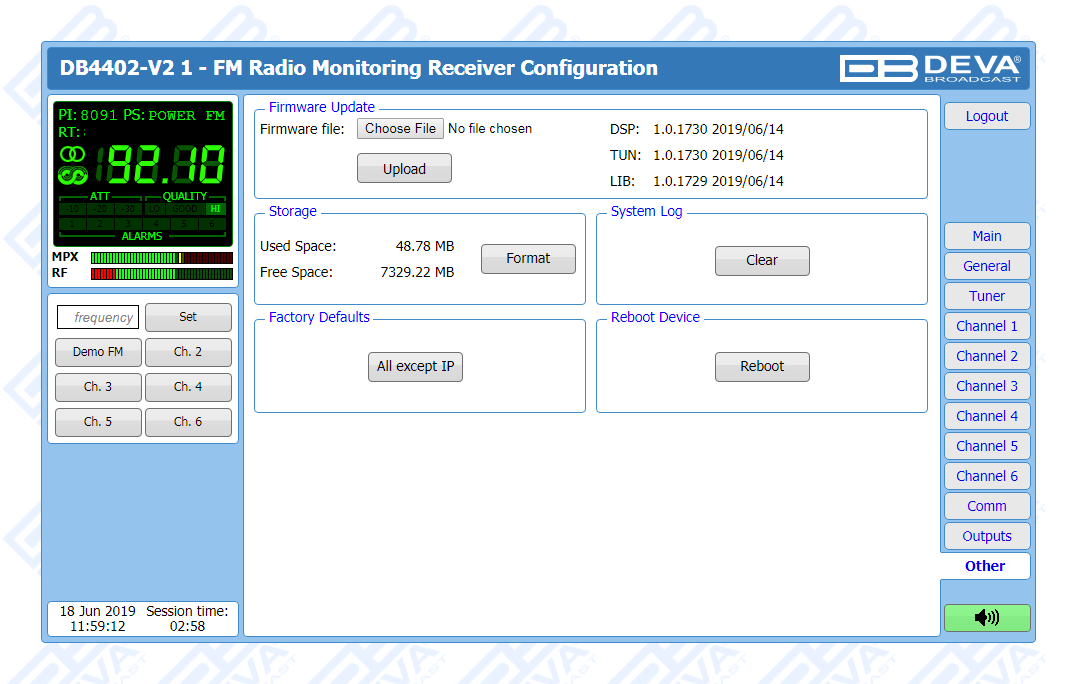

The device offers a “Restore Factory Defaults” option and easy update of the firmware. It is an advanced solution giving customers a number of advantages and top all-round, multi-faceted performance as both a monitoring tool and a streaming device.

RF Input
Tuning Range	User selectable, 87.1-107.9 MHz (CCIR), 65-74 MHz (OIRT), 76-95 MHz (Japan)
Tuning Step	10, 20, 50, 100 kHz
Tuner Sensitivity	30 dBµV
Antenna Port	BNC Connector, 50Ω
Internal Attenuator	0, 10, 20 and 30 dB
Dynamic range	100 dB
FM Demod
IF Filter Bandwidth	15 Increments (25kHz - 157kHz, Auto)
Frequency Response	±0.1 dB, 10 Hz to 86 kHz
Dynamic range	90 dB
Stereo Decoder
Frequency Response (L and R)	±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo)	60 dB, 50 µs de-emphasis
THD	0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis
Separation	50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis
Crosstalk	52 dB
RDS Decoder
Standards	European RDS CENELEC; United States RBDS NRSC
Error Correction & Counting	Yes
AF Decoding	Yes
CT (Time/Date)	Yes
PI, PTY, DI, MS	Yes
TA/TP	Yes
RT (Radio Text), RT+	Yes
PS (Program Service name)	Yes
ODA	Yes
Group Analyzer	Yes
BER Analyzer	Yes
Metering Accuracy
RF Level	±1 dB, 0 to 100 dBµV
Multipath	0 to 100%; accuracy - ±1%
MPX Deviation	±2 kHz, 10 to 100 kHz, 1 kHz resolution
MPX Power	±12 dBr; resolution - 0.1dBr, 10 sec. integration; accuracy - ±0.2 dBr
Pilot Level	±0.5 kHz, 1 to 12 kHz, 0.2 kHz resolution
RDS Level	±0.5 kHz, 1 to 12 kHz, 0.2 kHz resolution
Audio Level	±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution
FFT Spectrum Analysis
Input	Composite MPX, Audio
Dynamic Range	80 dB
FFT Length	1024
Sampling Rate	256 kHz - Composite, 64 kHz - Audio
Scope Analysis
Input	Composite MPX, Audio
Trigger Mode	Auto, Fall
Dynamic Range	±120 kHz
Sampling Rate	256 kHz - Composite, 64 kHz - Audio
User Interface
Web interface	Full monitoring and control; Interactive and easy to use
Indicators	6 LEDs (on front panel)
Headphone Output	1/8" (3.5mm) phone jack (on front panel)
Operating Conditions
Temperature	10° to 60°C
EMC Immunity	6V/m

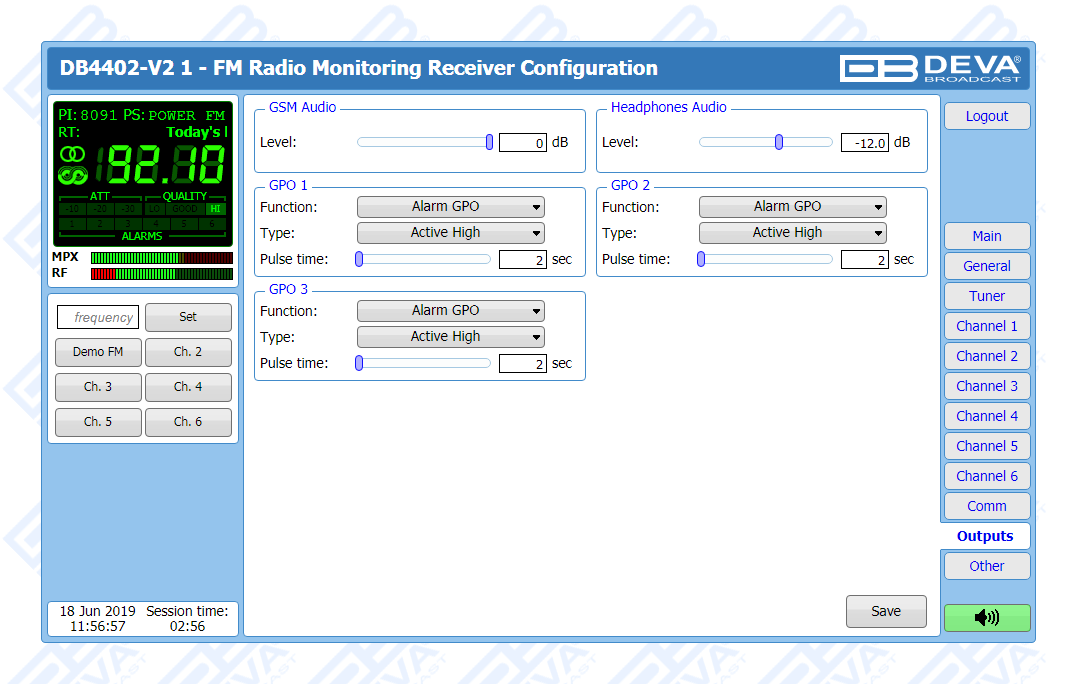

Outputs
Audio stream	Icecast/Shoutcast compatible audio stream
Alarms	E-mail, SMS, SNMP
Headphone	1/8" (3.5mm) Phone Jack
GSM Modem	15-pin Male D-Sub Connector
Communication Interfaces
Ethernet 10/100 Base-T	RJ45 Connector
GSM Modem	15 pin Male D-Sub Connector
Measurement Storage
Storage	16GB Build-in Memory Card
Data format	Text, CSV
Power
Voltage	100-240V / 50-60 Hz
Power Consumption	18VA
Connector	IEC320, Fused and EMI-suppressed
Size and Weight
Dimensions (W;H;D)	485 x 44 x 300 mm
Shipping Weight	540 x 115 x 300 mm / 2.487 kg
HS Code	8527212000
