Band Scanner GPS

FM Band Spectrum & Mod Analyzer, RDS/RBDS Decoder-Reader with built-in GPS Receiver

Small Box – Superb Characteristics!

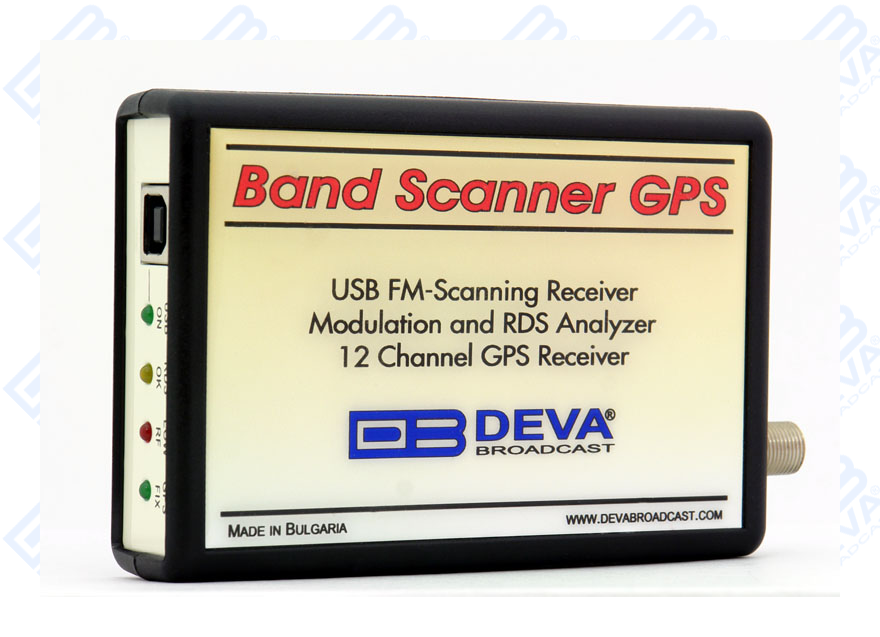

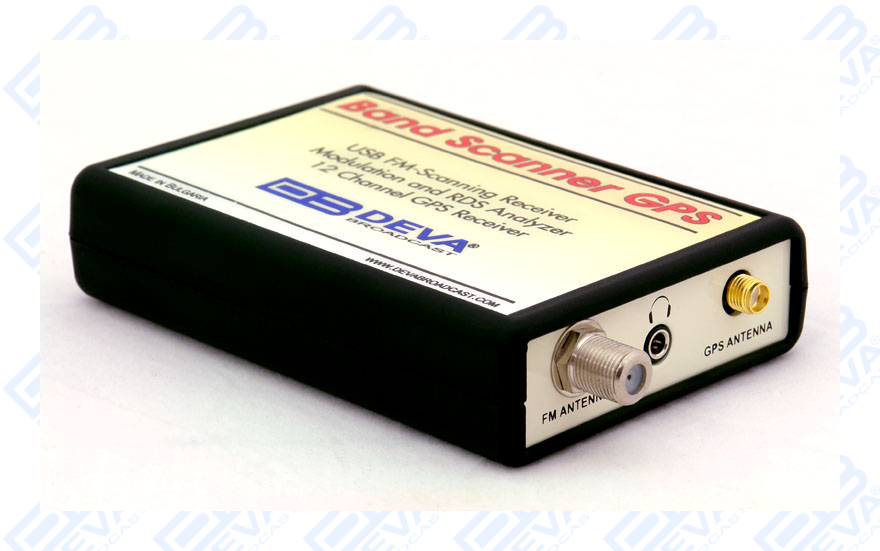

The Band Scanner GPS enables you to evaluate FM broadcast band congestion and to log stations’ identification parameters. This device is a Google Earth compatible tool with a built-in GPS Receiver generating a display of the collected FM Radio measurements. The Log file can be exported as a .kmz file or a transitional format and saved for future analysis.

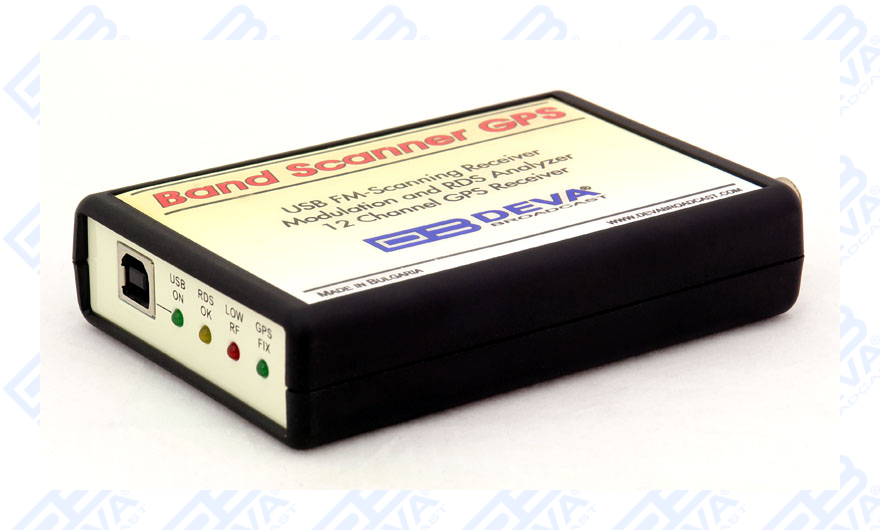

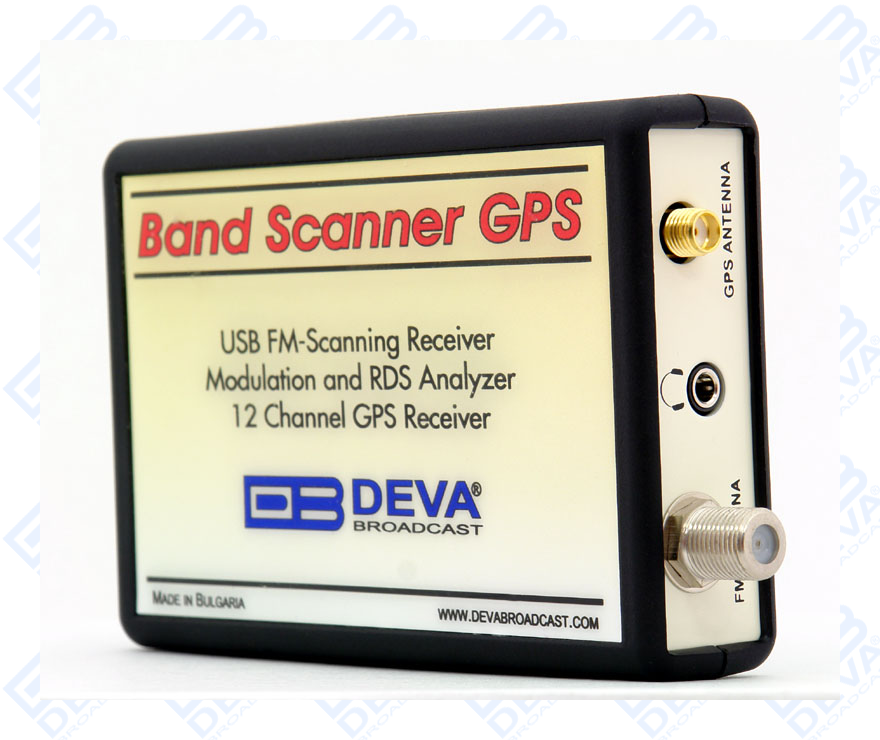

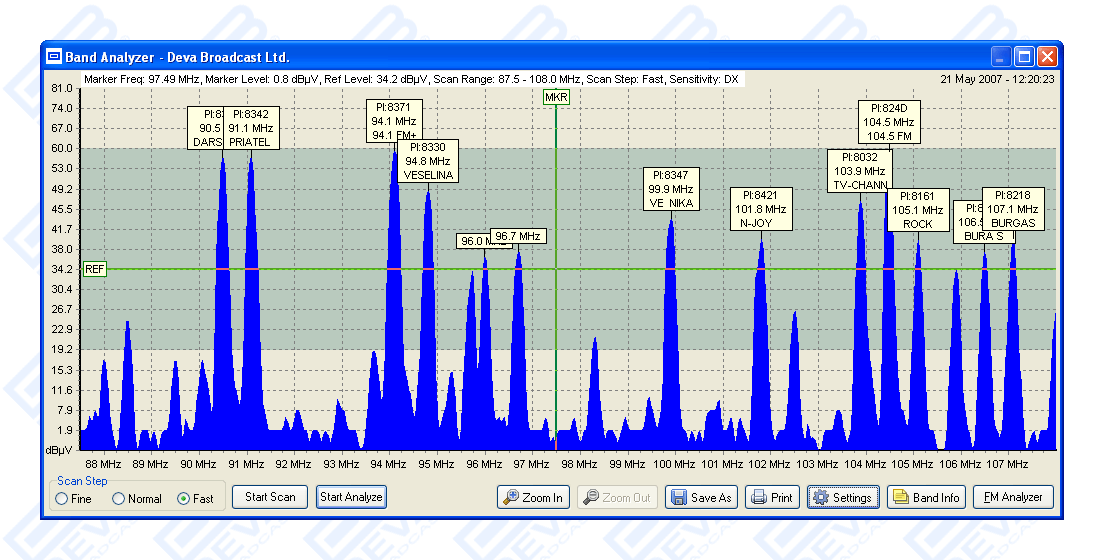

Pocket-sized and USB-powered, the Band Scanner GPS is the perfect device for field work. This unit can measure RF level, MPX deviation, Left & Right Audio levels, RDS and Pilot injection levels. The measurement results can be easily displayed in Google Earth. The band scan range is from 87 to 108 MHz. The supplied - free of charge - Windows software sweeps the receiver across the FM band, logging every carrier and generating a spectrum display of carrier level vs. frequency. It then analyzes each carrier and creates a station list.

Small Box – Superb Characteristics!
  • FM Band 87 – 108 MHz Spectrum analyzer

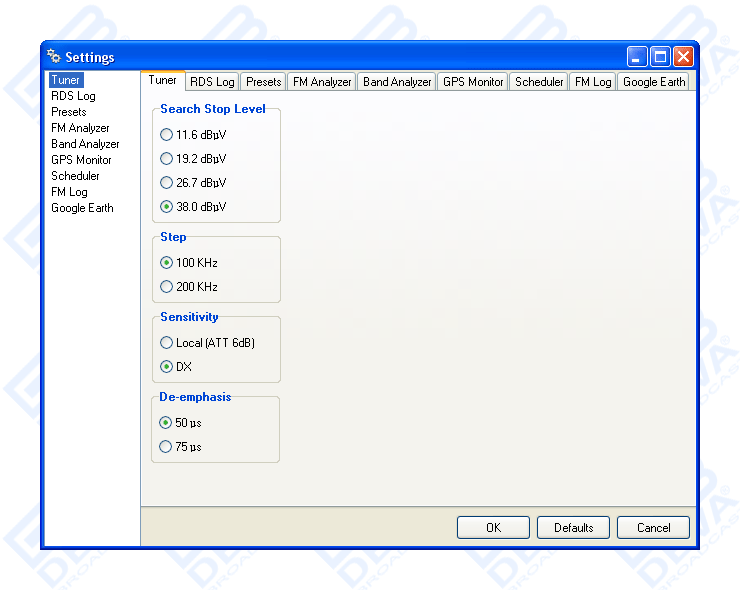

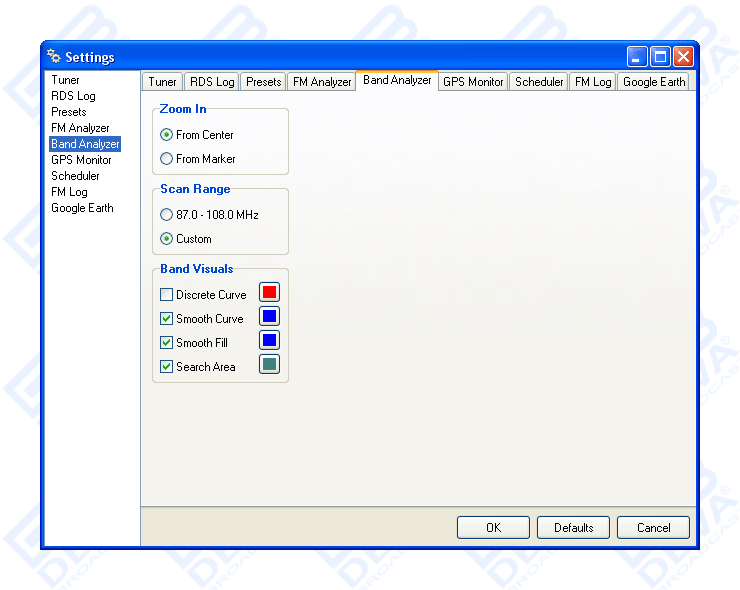

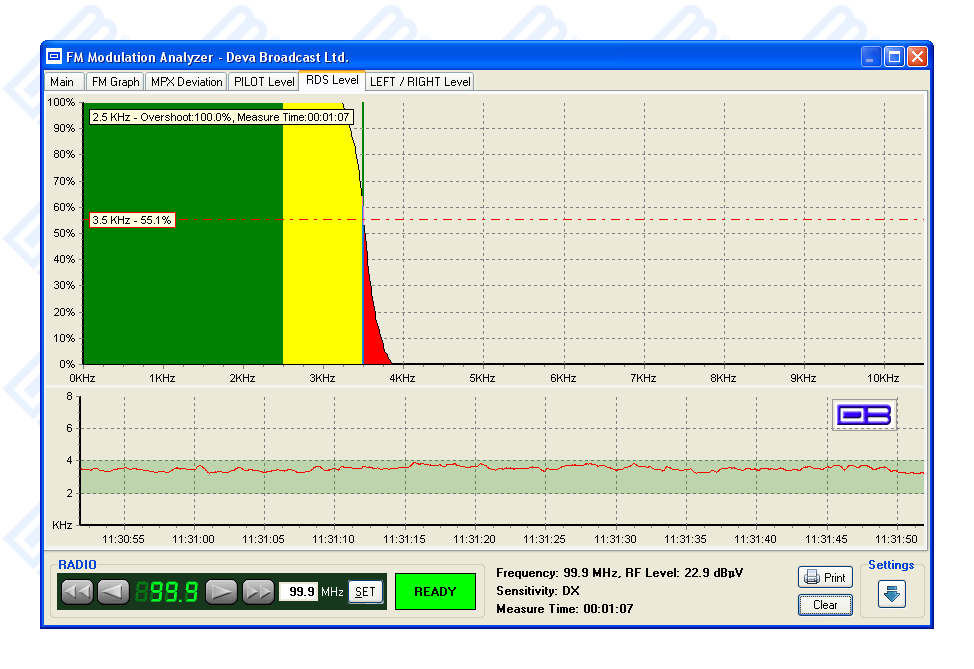

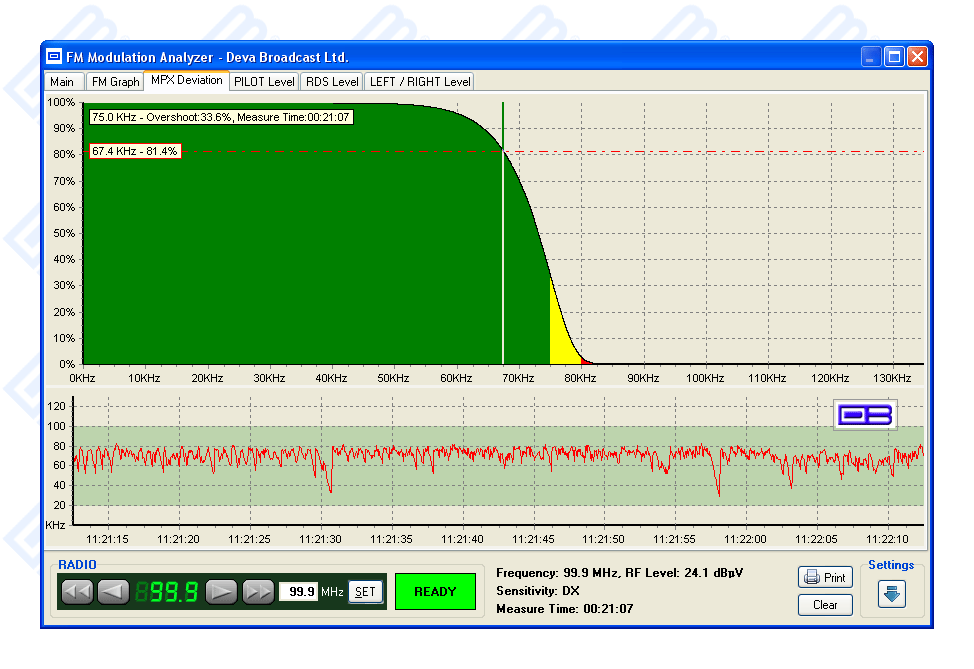

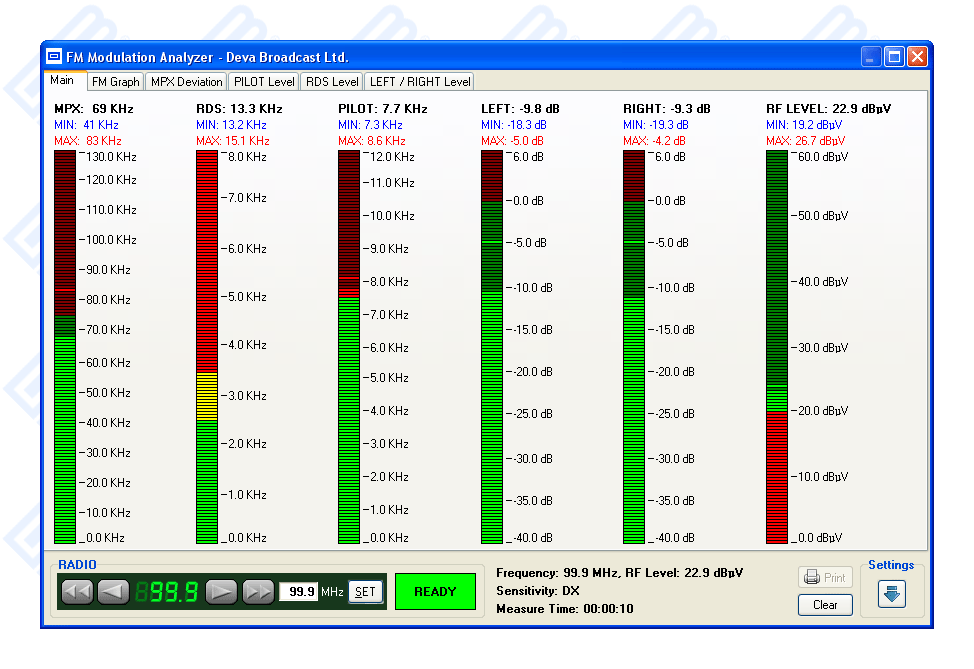

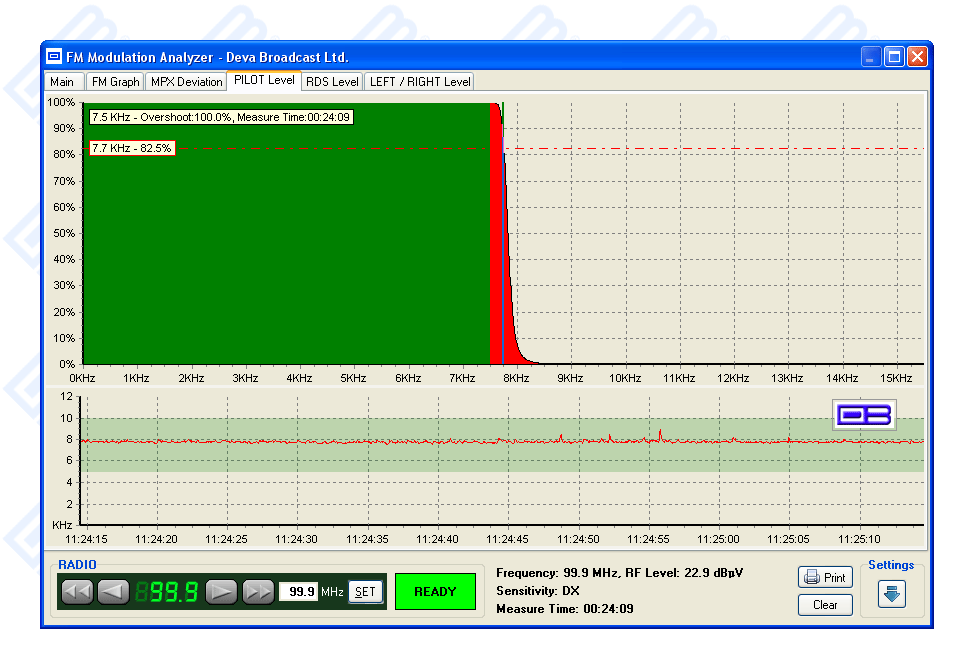

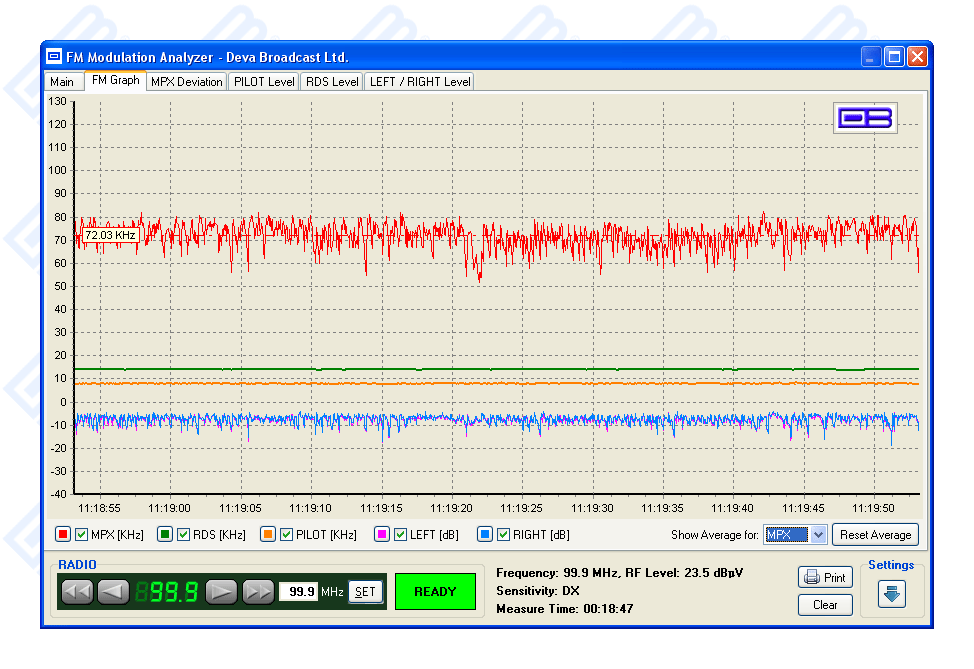

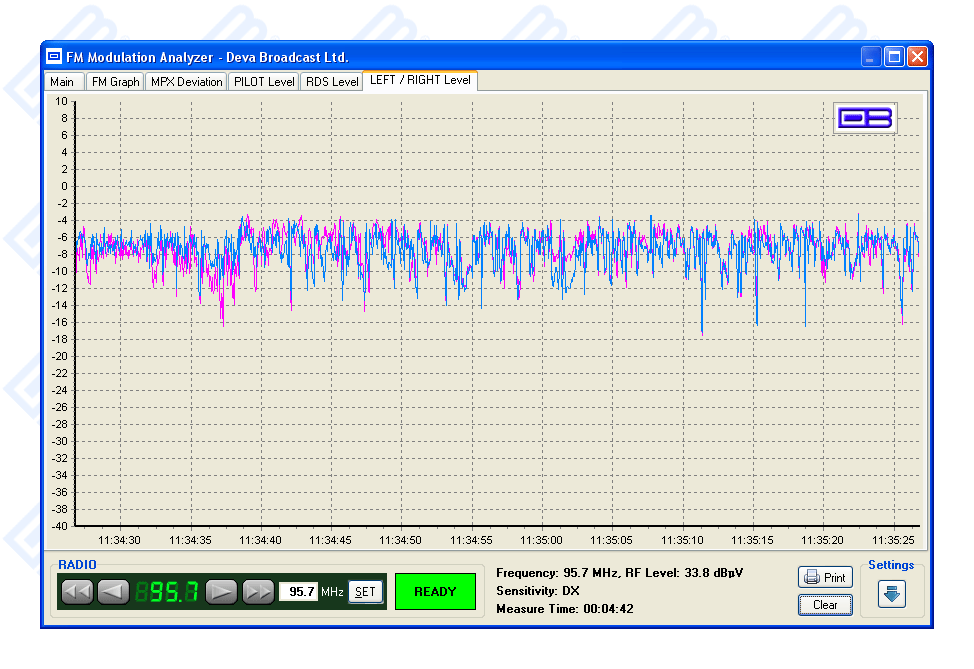

  • MPX, PILOT & RDS deviation meters
  • Built-in Stereo decoder; LEFT and RIGHT level meters

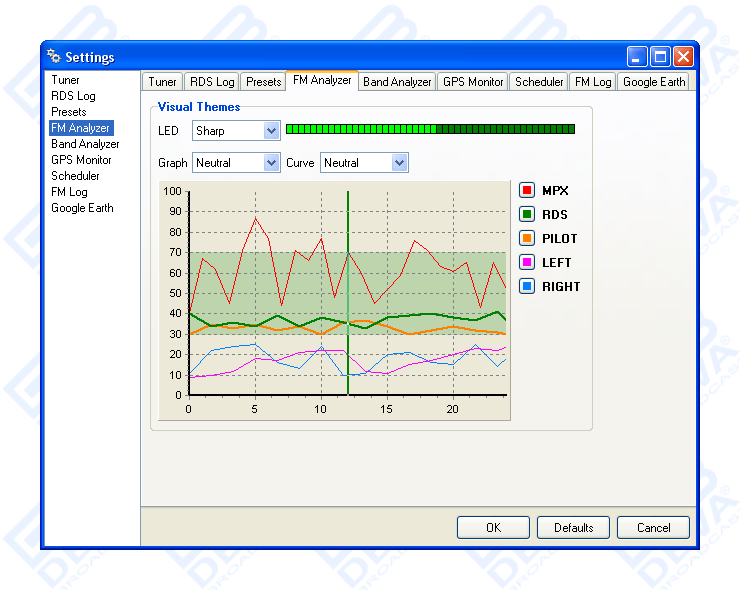

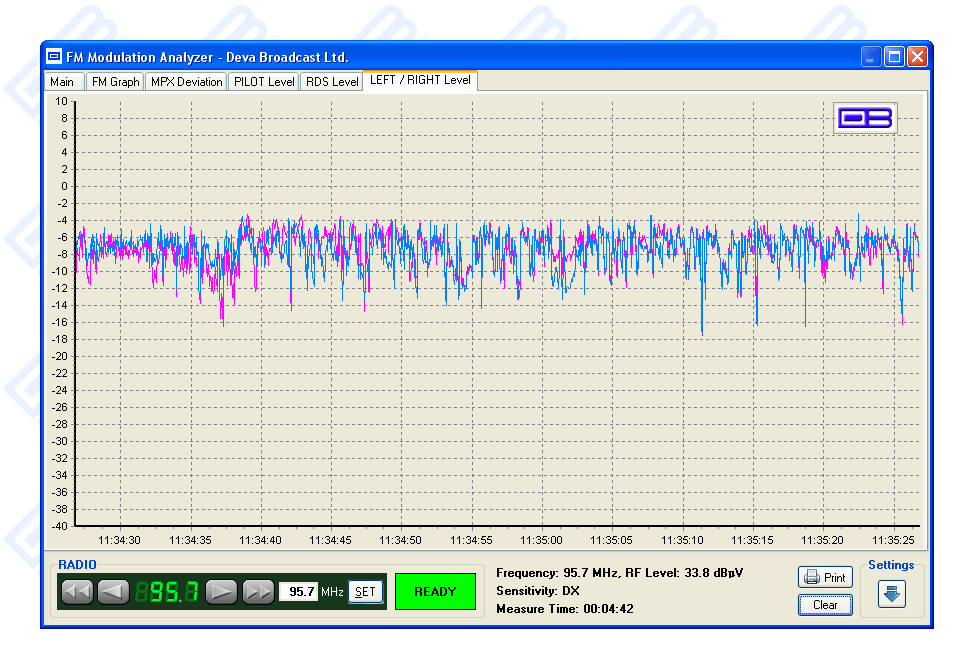

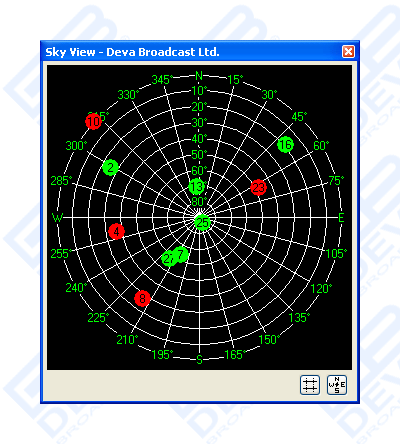

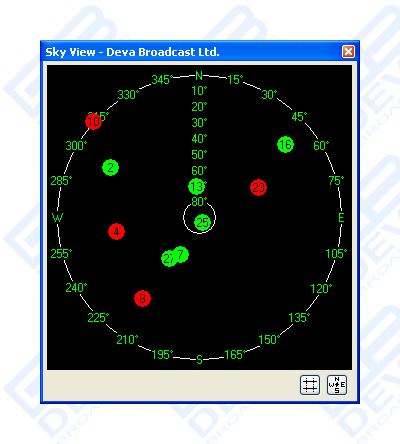

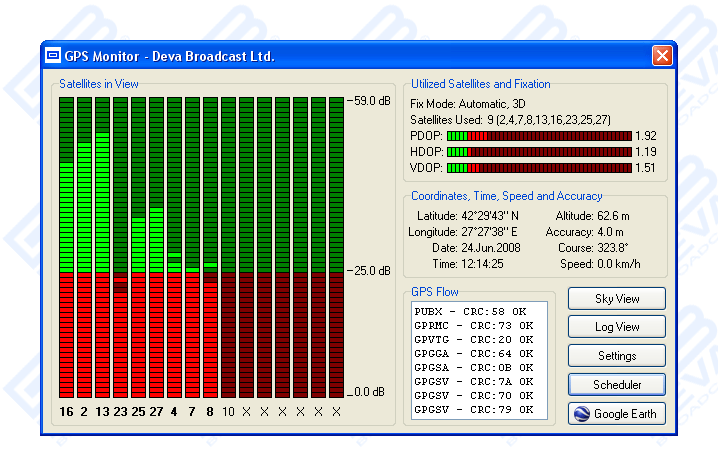

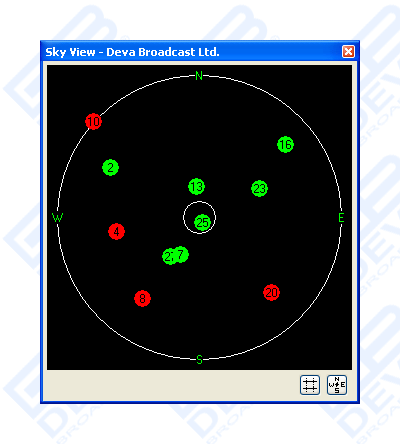

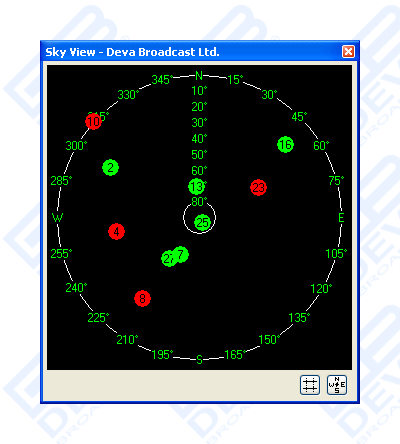

  • Built-in 12-channels GPS Receiver

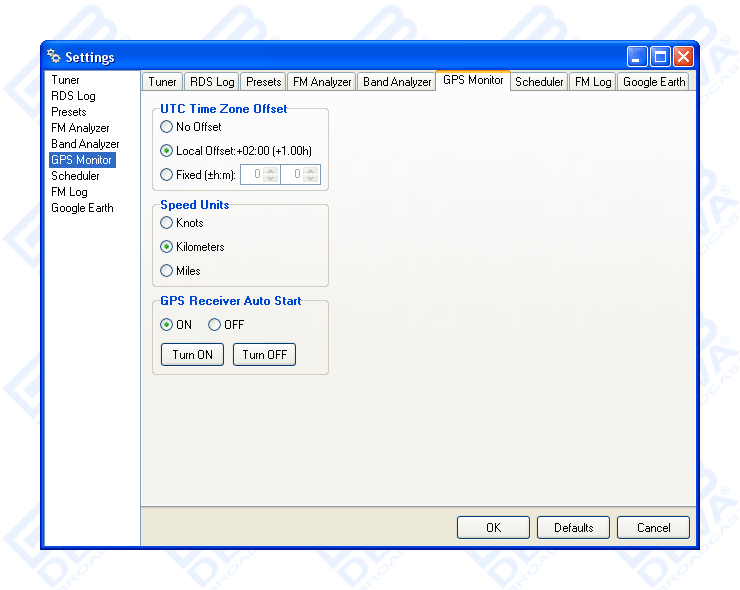

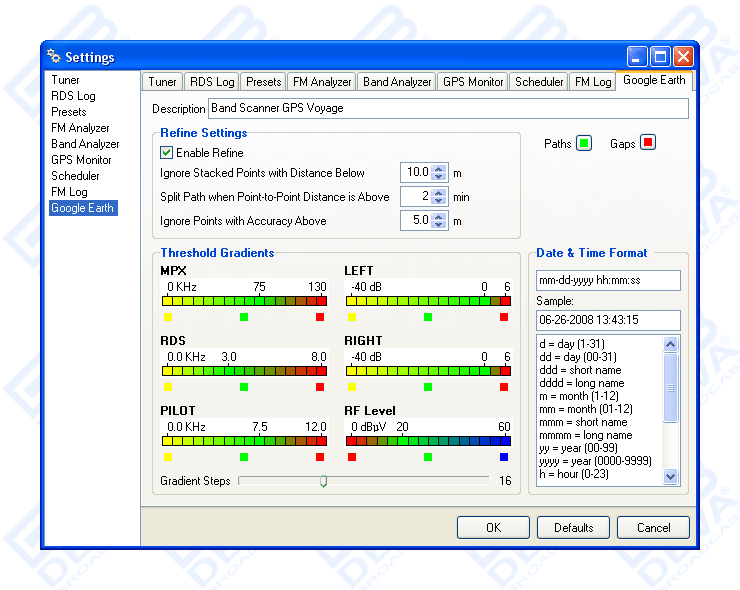

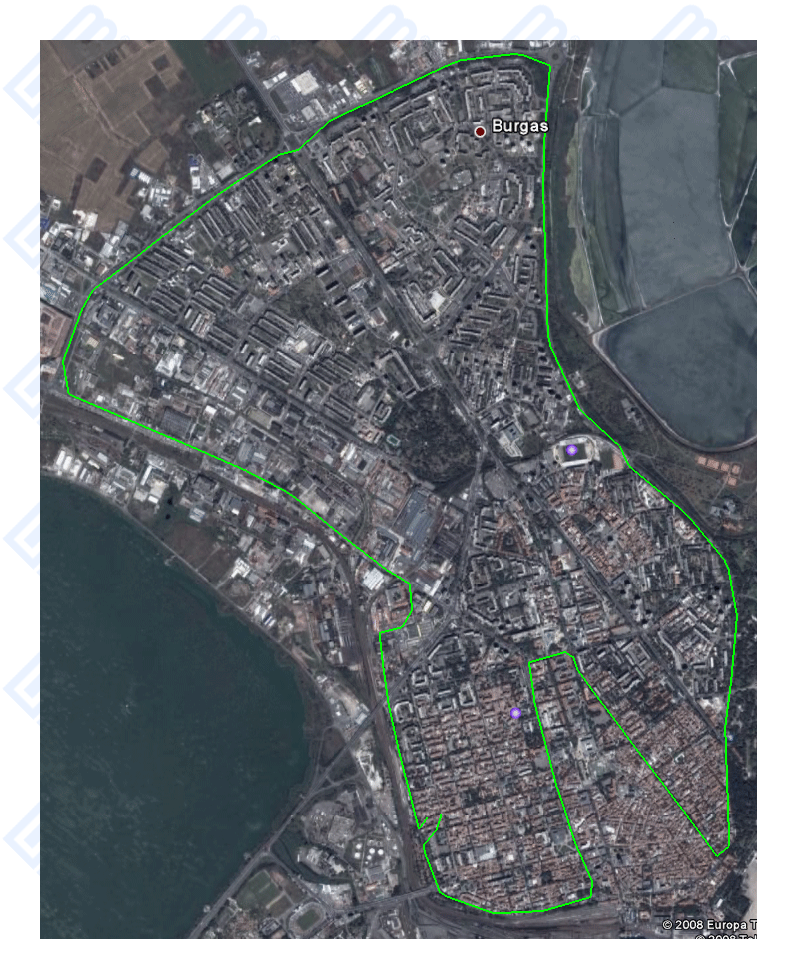

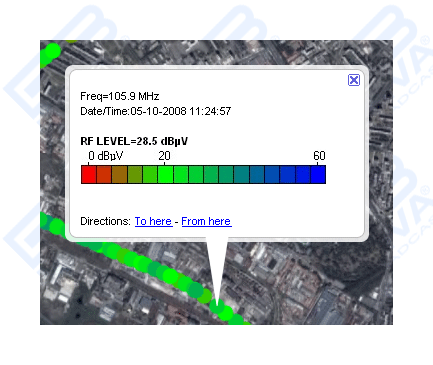

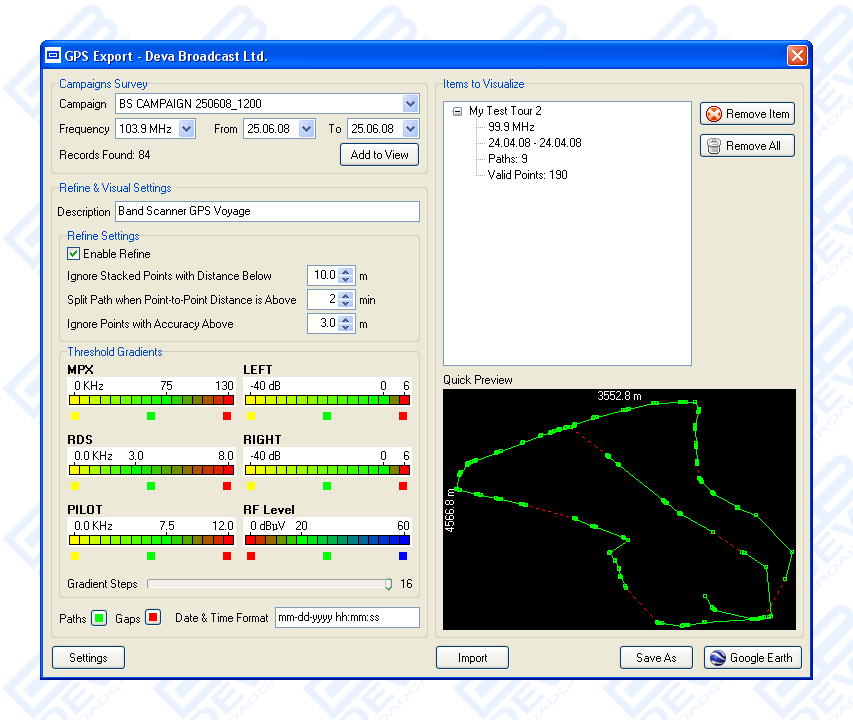

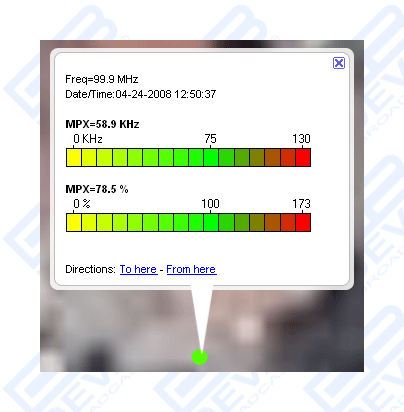

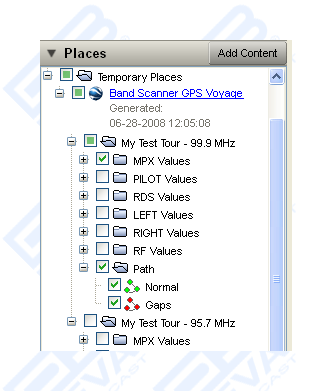

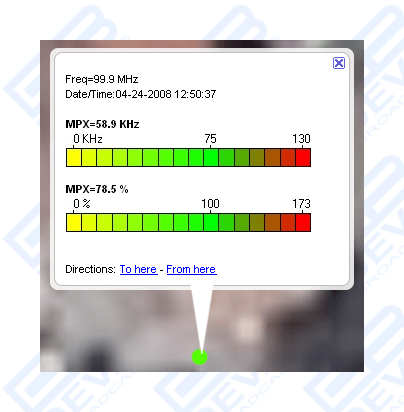

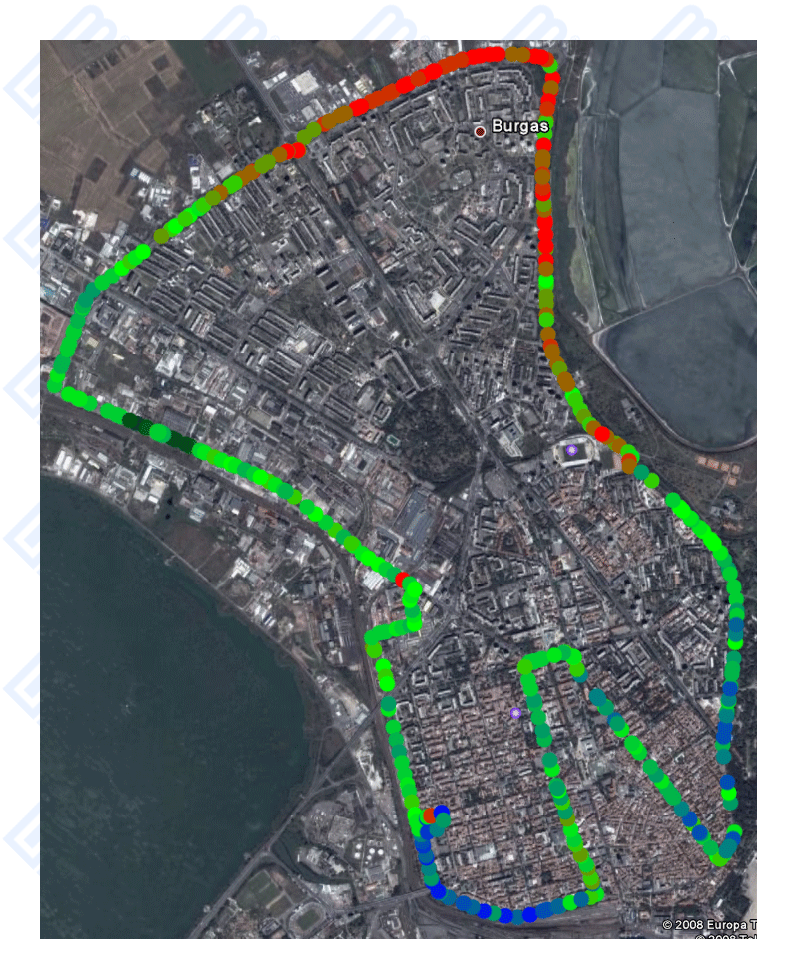

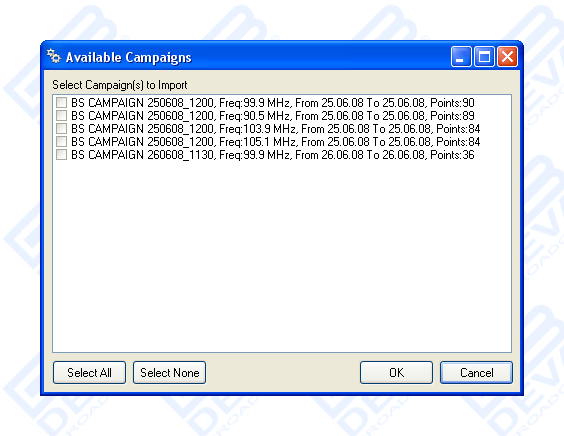

  • Measurement results visualisation in Google Earth
  • Auto search tuning
  • Headphones audio output
  • Full feature RDS and RBDS decoder
  • RDS/RBDS Groups Detector & Analyzer
  • RDS/RBDS Stream BER meter

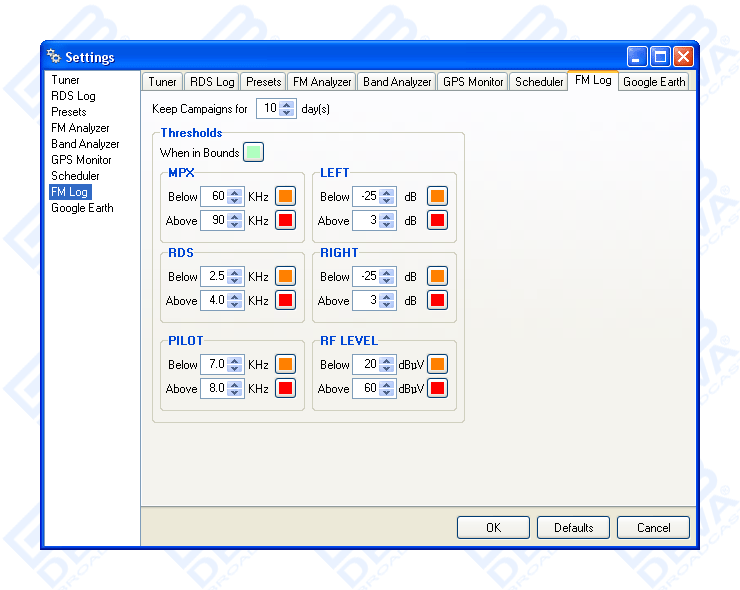

  • FM/RDS/RBDS Data Logger
  • View playlists of the competitive stations
  • Saving and exporting the playlists to Excel file
  • Compare the signal strength to competitors and other stations
  • Pocket size USB powered box. No external power supply required

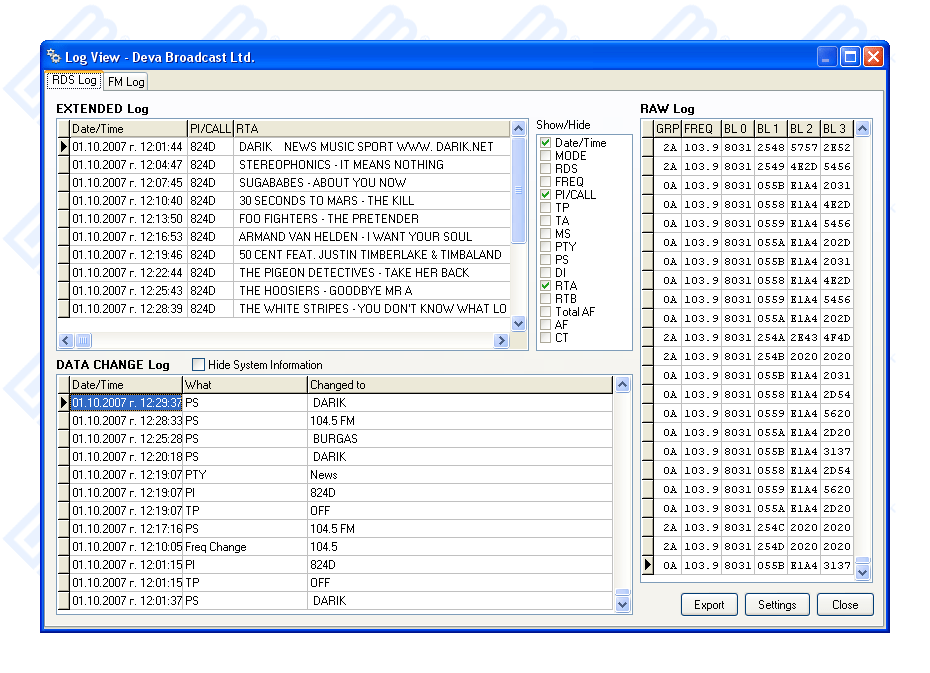

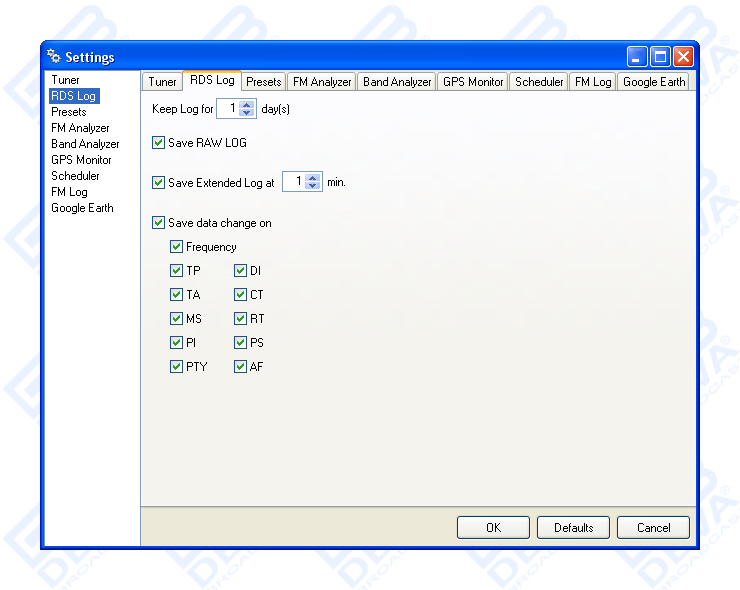

  • Tracking all the detailed histories saved in the RDS Data Log

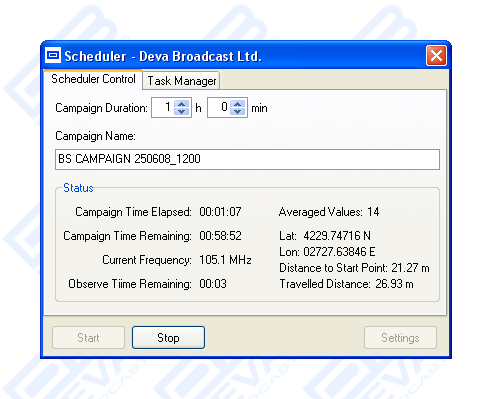

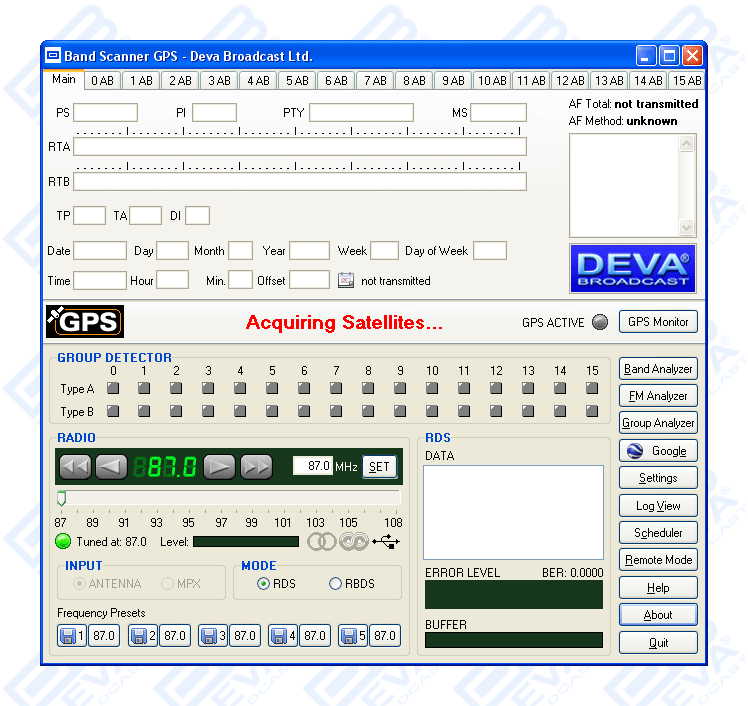

This is a tool to evaluate FM broadcast band congestion and to log station identification parameters."Band Scanner GPS" is a Google Earth compatible tool for visualization of collected FM Radio measurements. When running a campaign with the "Band Scanner GPS", the results will be saved in a Log file. "Band Scanner GPS" can then convert this file into KMZ format and the results could be viewed on Google Earth. The Log file can be exported also as transitional format for future analysis or to kept in record. The "Band Scanner GPS" can measure RF level, MPX deviation, Left & Right Audio levels, RDS and Pilot injection levels. The system is powered by the USB port of any Windows PC. Supplied free of charge Windows software sweeps the receiver across the FM band, logging every carrier and generating a spectrum display of carrier level vs. frequency. It then analyzes each carrier and creates a station list. Stations with an RDS presence are further refined to show all the radio data groups that were being transmitted. Its interface is like a portable radio's: It may be tuned manually through the receiver screen or by double-clicking a point on the spectrum plot or an entry on the station list. Spectrum plots may be saved as jpg or bmp files. The RDS data error level is graphed in a separate window on the receiver screen. The program can be monitored with headphones plugged into a standard 1/8" jack.

Small Box – Superb Characteristics!
FM receiver
FM frequency87.0-108.0 MHz
RDS sensitivity0 error at Vrf=-90dBµV, 4KHz RDS deviation, no modulation
Strong fieldsAGC
RF level evaluation± 4dB from 20°C to 30°C, 20÷60dBµV without modulation
Dynamic0 to 54.6dBµV; 0 to 60dBµV with internal attenuator switched on
Attenuator6dB built-in, manual operation
Audio, MPX, Pilot, RDS levels
Measurement validityRF level preferably > 50dB
Multiplex levelPeak level displayed, 1000 samples over 1 second
Audio levelPeak level displayed, 1000 samples over 1 second
Pilot levelMean peak level, 1000 samples over 1 second
RDS levelMean peak level, 1000 samples over 1 second
Accuracy of MPX deviation display ± 5KHz, ± 2KHz typ
Accuracy of audio level display ± 5%
Accuracy of sub-carrier level displays± 10% typical and not guaranteed
FM Antenna input
Connector 'F' on rear panel
Impedance75 Ω
External attenuatorNo
Stereo decoding
Stereo separation>20dB
Typical separationApproximately 26dB to 35dB
RDS data decoding
StandardsEuropean RDS CENELEC and United States RBDS NRSC
Error CorrectionYes
Group countingYes
Error countingYes
AF decodingYes
CT (Time/Date)Yes
PI, PTY, DI, MSYes
TA/TPYes
RT (Radio Text)Yes
PS (Program Service name)Yes
EON (Enhanced Other Networks information)Yes
PTYN (Program TYpe Name)Yes
SLC (Slow labelling Codes)Yes
ODA (Open Data Applications)Yes
GPS receiver
Number of channels12

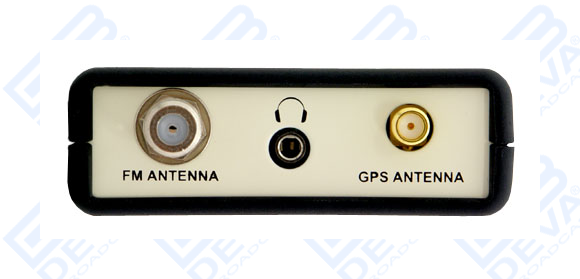

AntennaPre-amplified, 5m of cable, magnetic
ConnectorSMA, rear panel
Frequency program memories

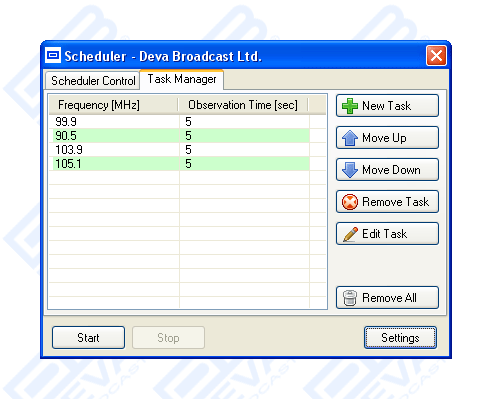

GPS Scheduler Capacity50 frequencies

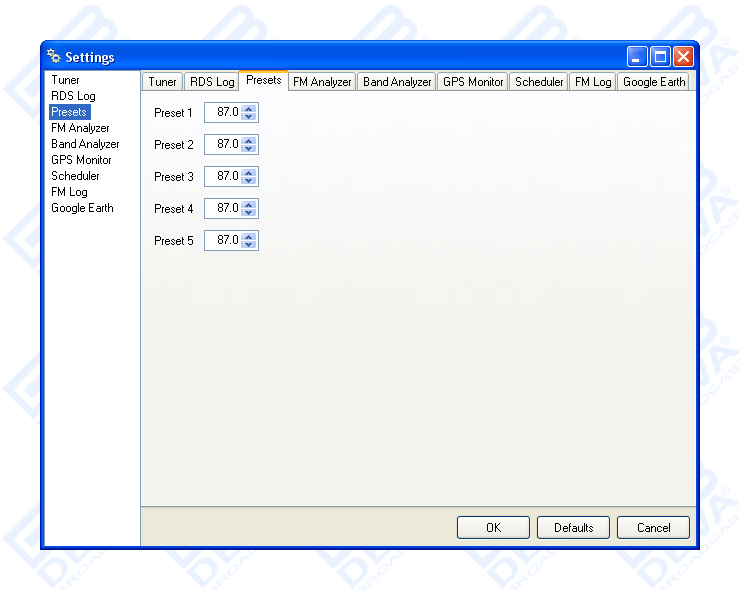

FM Tuner Presets5 frequencies
Measurement storage

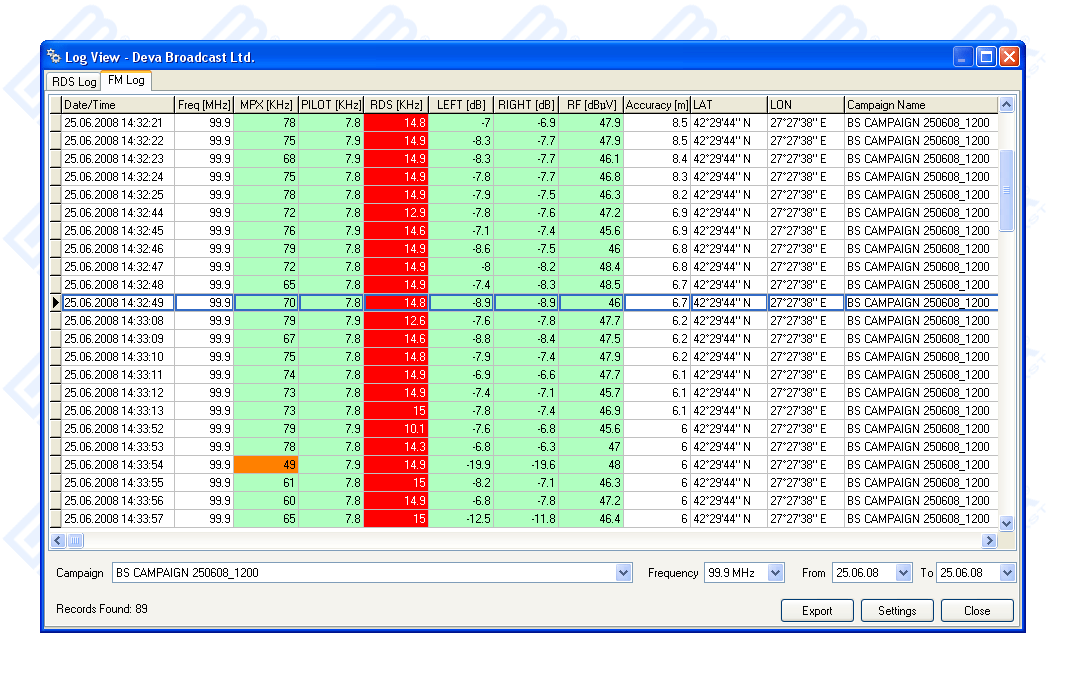

StorageLOG file
Data formatsMicrosoft Excel compatible format (csv), Google Earth compatible KMZ
User interface

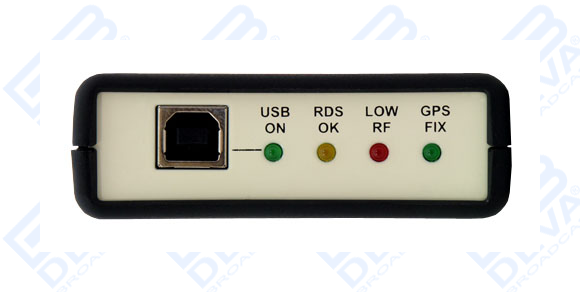

Indicators4 LEDs, front panel
Headphone output1/8" (3.5mm) phone jack, rear panel
Operating conditions
Equipment operational between10° and 40°C
EMC immunity6V/m
Headphones output
ConnectorStereo, 1/8" (3.5mm) phone jack
VolumeFixed
Communication
TypeUSB 2.0 compatible
ConnectorB-type, front panel
Power Requirement
Power supply USB powered
ConnectorB-type, front panel
Size and Weight
Dimensions (W;H;D)74 x 26 x 109 mm
Shipping Weight230 x 70 x 172 mm / 0.5kg
Frequently Asked Questions
  • What does (same) and (reg.) mean in the RDS AF List?
    This is a citation from US RBDS Standard/EN 50067 standard:
    Method B AF coding is used where it is required to indicate frequencies that belong to different regions, which may carry different programs.
    For the transmission of the frequency pairs within one block the following convention is used:
    • They are generally transmitted in ascending order, e.g. 89.3 - 99.5 or 99.5 - 101.8 F1 < F2
    • In special cases they are transmitted in descending order, if they belong to different regions, or carry from time to time different programs, e.g. 99.5 - 90.6 or 100.7 - 99.5 F1 > F2
    In both of the above examples 99.5 MHz is the tuning frequency.

    Examples of a AF method B coding:
    F1F2Commentary
    #1189.3Total number (11) of frequencies for tuning frequency (89.3)
    89.399.5F2 > F1 hence 99.5 is an AF of tuned frequency 89.3, and it is the same program
    89.3101.7F2 > F1 hence 101.7 is an AF of tuned frequency 89.3, and it is the same program
    88.889.3F2 > F1 hence 88.8 is an AF of tuned frequency 89.3, and it is the same program
    102.689.3F2 < F1 hence 102.6 is an AF of a regional variant of tuned frequency 89.3
    89.389.0F2 < F1 hence 89.0 is an AF of a regional variant of tuned frequency 89.3
    #999.5Total number (9) of frequencies for tuning frequency (99.5)
    89.399.5F2 > F1 hence 89.3 is an AF of tuned frequency 99.5, and it is the same program
    99.5100.9F2 > F1 hence 100.9 is an AF of tuned frequency 99.5, and it is the same program
    104.899.5F2 < F1 hence 104.8 is an AF of a regional variant of tuned frequency 99.5
    99.589.1F2 < F1 hence 89.1 is an AF of a regional variant of tuned frequency 99.5
  • Why when running a campaign, the PI tracking cannot be maintained?
    You need to make sure first that the Signal Quality has not became very poor. Bad signal quality leads to erroneous RDS reception and then to incorrect Alternative Frequencies (AF) lists. On the other hand, when there are long AF lists in such 'bad' environment, Band Scanner GPS lacks the speed to observe all the AFs correctly, which results in wrong/missing PIs. Also, multiple tasks, together with poor signal reception produce unusual gaps. We recommend that you use RF antenna (installed outside the vehicle) and isolate the problematic station and run campaign only with it. Driving speed is also a factor.
  • Why upon installation of the software, the USB green LED on the unit is flashing rapidly?
    Green flashing LED indicates that Band Scanner GPS has no drivers installed. With a normal installation, the driver will be located here: My Computer/Local Disk (C:)/Program Files/Band Scanner GPS/Drivers. Drivers can be found on the supplied CD also, in the 'Drivers' folder. Driver Installation details are described in DEVA User Manuals, chapter 'Installing the Software'.
  • Why there is a very slow frequency change when running a campaign?
    Running a campaign depends on many factors. In case of a very slow frequency change, or no change at all, the reasons could be several:
    • Bad signal reception - if switch to a frequency with bad signal reception is made, it is obviously a dead end one - due to errors, no information could be collected for a switch to another frequency to take place.
    • Too long AF lists (with a short listen time it could not acquire AF list at all) – After observing all frequencies from the list, one that best suits your purposes should be chosen. Bad Signal Reception and PI tracking are yet another factors to influence the frequency change. For more detailed investigation into the possible reasons, you need to know the changeover points (AF lists, PIs, etc.) and to observe the campaign file.
  • How can I reset the data acquisition?
    Press the "SET" button. Whenever setting the frequency (same or not) it will clear all of the acquisitions.
