DB3010

FM Radio & IP Audio Confidence Monitoring Receiver

Full Fidelity Program Monitoring without Compromise

DB3010 is a debut tool by DEVA to provide leadership experience for broadcasters.

The tool supervises simultaneously the FM and the online stream of the radio station to ensure perfect performance and remote monitoring. This rack-mountable unit is equipped with two speakers to reproduce mid- and high-range audio frequencies, and one high-efficiency bass reflex speaker for high-quality sound reproduction. DB3010 supports MP3 and PCM IP audio codecs. Users are enabled to toggle through the FM and online stream of radio station to confirm audio presence and quality in live broadcast environments.

DB3010 monitoring solution has a built-in sensitive and high-selective DSP-based tuner that allows the FM and online stream of the station to be selected, monitored and listened to. You can constantly monitor the sound of your station, measure and store data for future analysis. DB3010 comes with a built-in RDS/RBDS decoder for self-monitoring purposes.

Full Fidelity Program Monitoring without Compromise
  • FM Band 87.1 - 107.9 MHz DSP-based Tuner
  • Up to 100 dBµV direct RF Antenna Input
  • Selectable wide range IF filter bandwidth

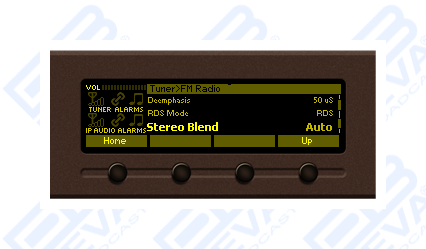

  • Selectable De-emphasis - 50µs and 75µs
  • RDS and RBDS decoder with BER meter

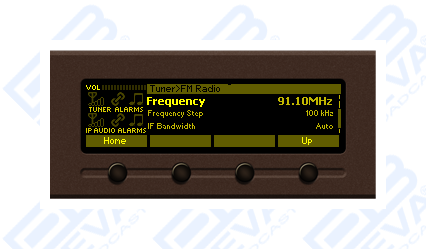

  • Wide angle, easy to read OLED display
  • Very Intuitive Navigational Menu

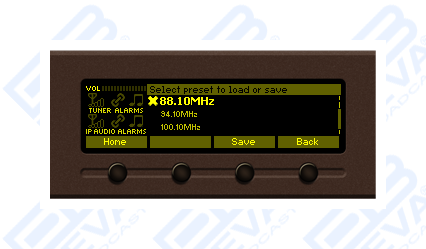

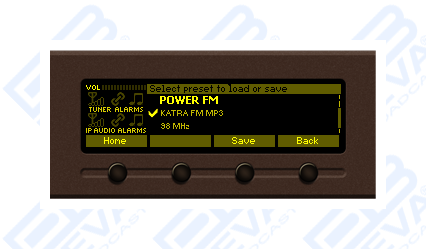

  • Quick Station access via 4 Presets
  • Real Time Audio Program Streaming
  • Full fidelity radio program monitoring in only 1RU
  • Built-in WEB server

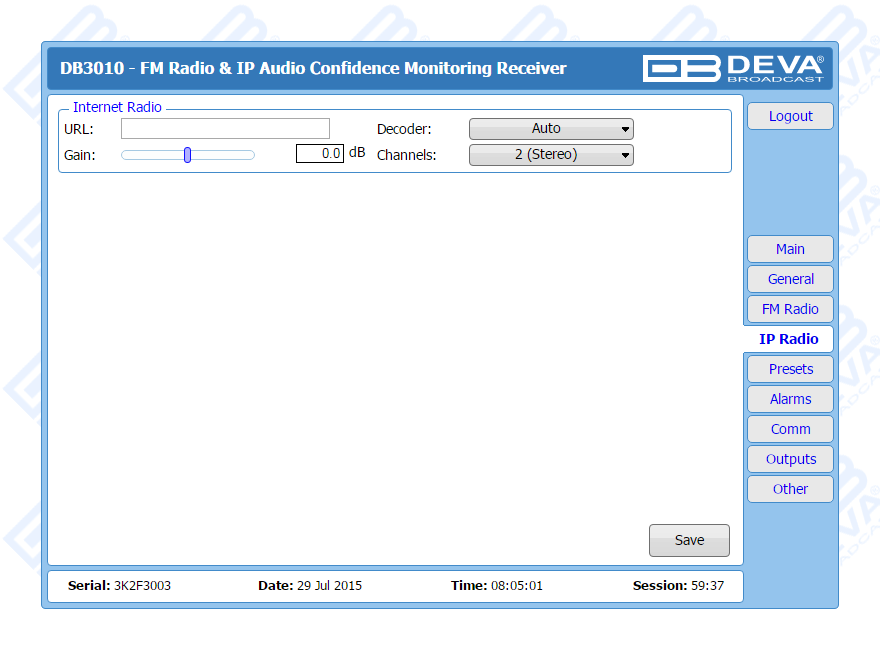

  • Easy to use WEB interface
  • Apple and Android devices support
  • Restore Factory Parameters option

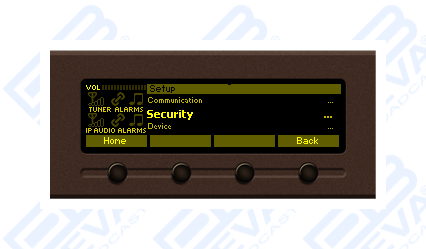

  • Protected access to the device settings
  • Easy Installation and Setup
  • Wide operating voltage range: 100-240V AC
  • Bright bar graph LED metering of the RF and Audio Levels
  • Headphone output with front panel level control
  • Advanced Internet Radio Monitoring Capabilities
  • Automatically decodes MP3 and PCM IP Audio
  • Support of all standard bitrates and VBR as well
  • SHOUTcast / ICEcast compatible

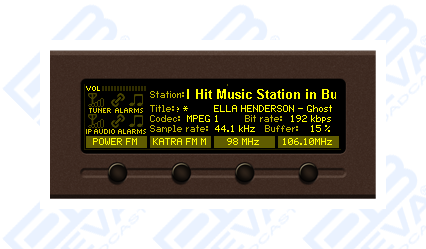

  • Automatically displays live metadata for all standards
  • Adjustable alarms for Stream Loss and Internet Loss
  • DSP controlled, high efficient class-D switching amplifier
  • Accurate 3-way speaker system
  • Two mid/high frequency speakers for excellent stereo imaging.
  • Active crossover for perfect separation between mid-range and bass bands
  • Magnetically shielded drivers that allows placement next to video monitors

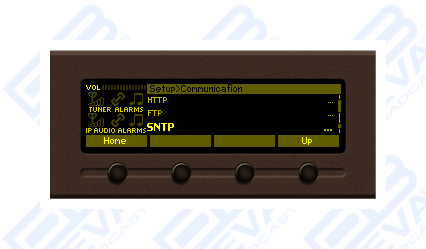

  • SNTP for automatic synchronization of the built-in clock

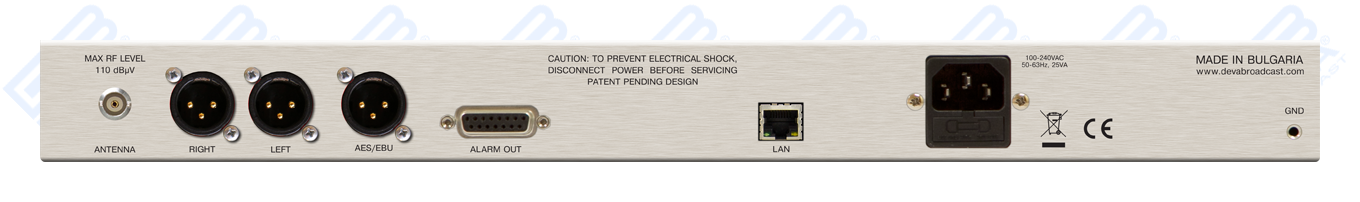

  • Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors
  • Professional AES/EBU Digital audio output
  • LAN port for full TCP/IP remote control and monitoring

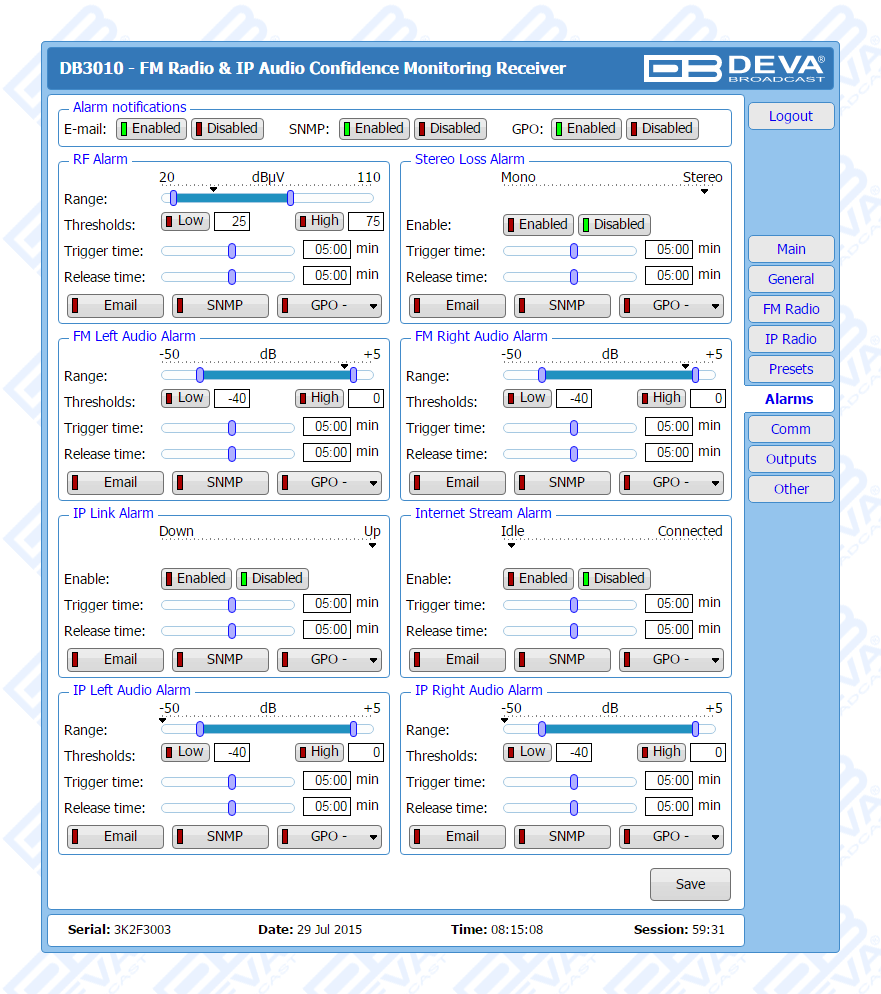

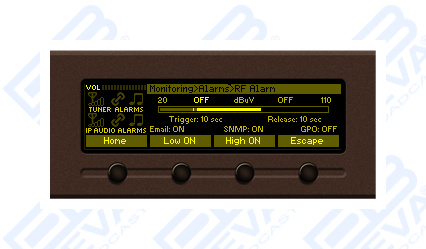

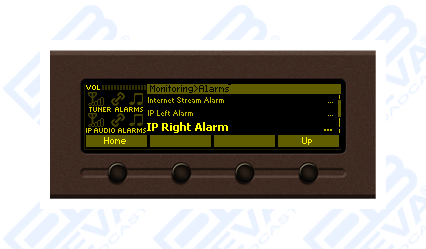

  • Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels

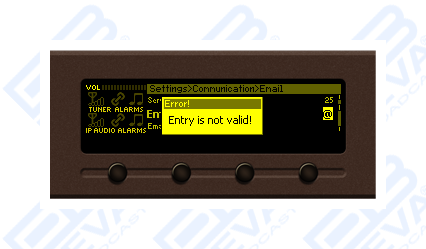

  • Alarm dispatch via E-mail, SNMP ver.2C and GPO
  • Firmware updates will ensure improved operation
  • Multi-point screw fixings ensured 19" aluminum case

True to our strive for innovation and prepared to meet the evolving customer needs, DEVA is bringing to the market an extension to our monitoring portfolio to stand out confidently against everything that is on the market - the DB3010 FM Radio & IP Audio Confidence Monitoring Receiver. Our debut tool supervises simultaneously the FM and the online stream of the radio station, thus ensuring perfect service and performance, while maintaining full fidelity program monitoring.

Affordable and rich in features, the DB3010 is a unique value proposition for new stations and for the ones in need of upgrade. Internet radio has permanently established itself as a preferred medium for access to favorite music. Surveys show the progressive increase in the number of online radio listeners. The growth of technology and the unlimited internet access have influenced the market and DEVA is ready to respond with a device to supervise simultaneously the FM and the online stream of the radio station, thus ensuring immaculate performance.

In continued adherence to DEVA hallmark characteristic, the user-friendly operation, our confidence monitoring receiver guarantees crystal clear sound reproduction. This rack -mountable unit is equipped with two speakers to reproduce mid- and high-range audio frequencies, and one high-efficiency bass reflex speaker for high-quality sound, without a trace of distortion. The tool supports MP3 and PCM IP audio codecs. In addition, DB3010 allows users to toggle through the FM and online stream of your radio station to confirm audio presence and quality in live broadcast environments. The device is compatible with the most popular streaming media platforms, Icecast and Shoutcast included.

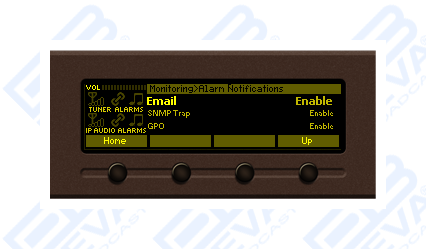

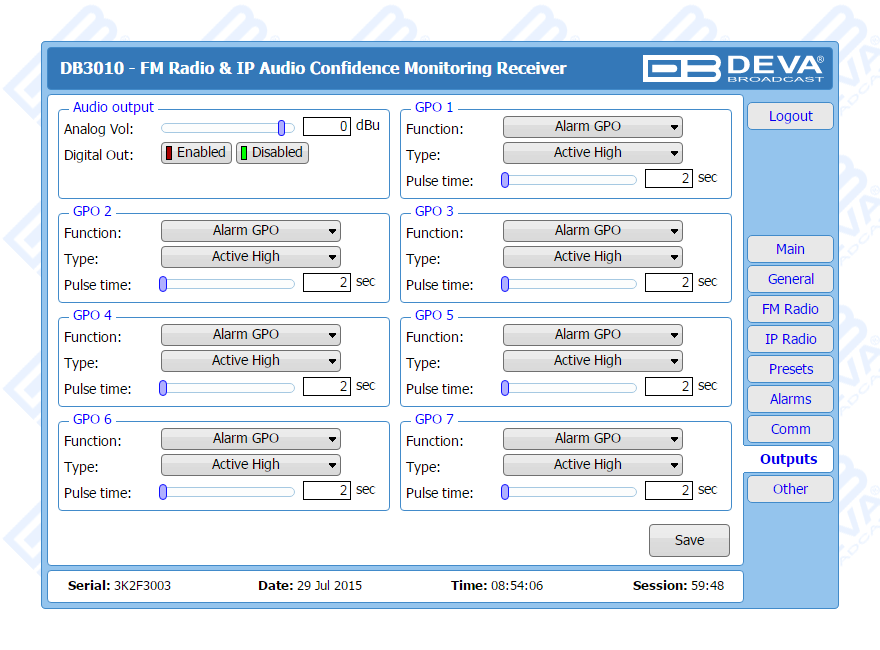

This state-of-the-art monitoring solution has a built-in sensitive and high-selective DSP-based tuner that allows the FM and online stream of the station to be selected, monitored and listened to through the top-quality speakers or headphones. This dedicated hardware will not only allow you to constantly monitor the sound of your station, but will also measure and store for future analysis the RF level, MPX deviation, Left & Right Audio levels values. To boost performance even more, the DB3010 comes with a built-in RDS/RBDS decoder for self-monitoring purposes. The rear-panel alarm GPOs, E-mail and SNMP ver. 2C provide local alarm options, and online notifications in case of Stream and Internet loss or change in the RF, Left and Right Audio Levels.

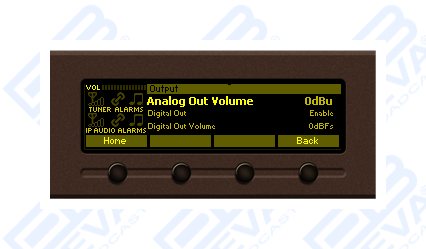

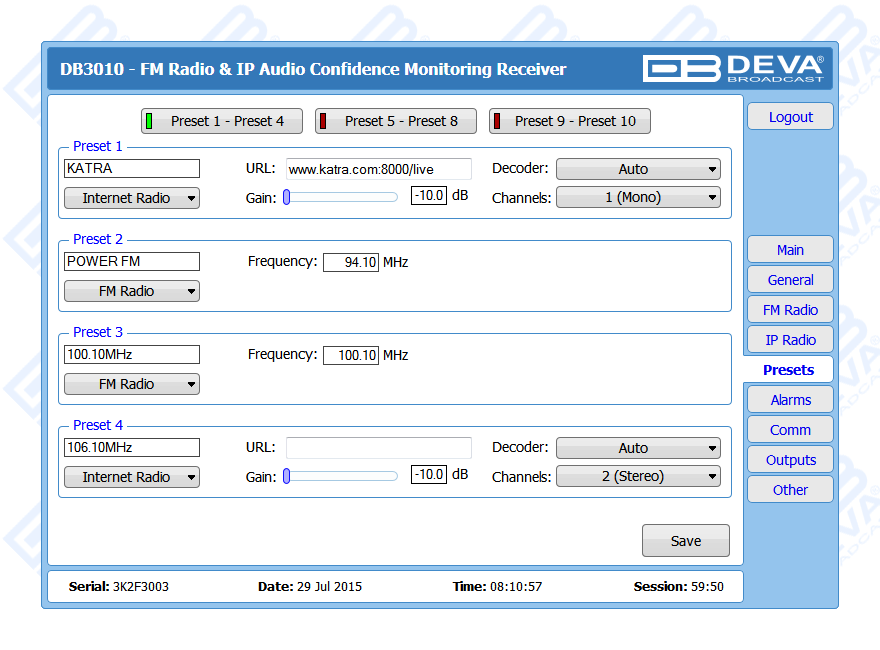

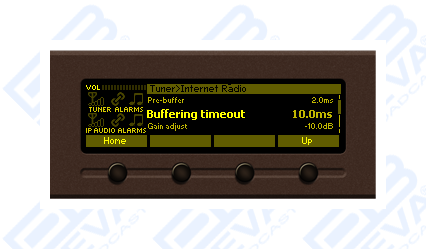

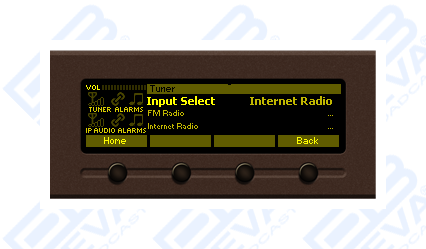

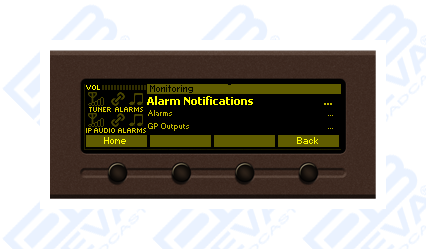

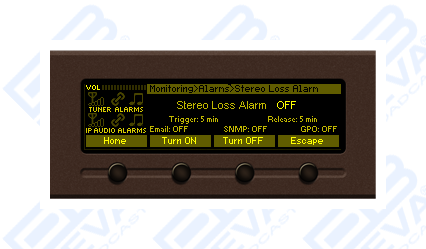

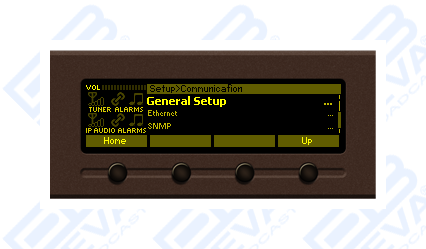

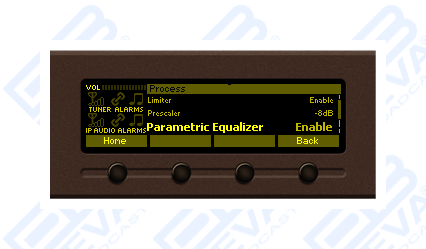

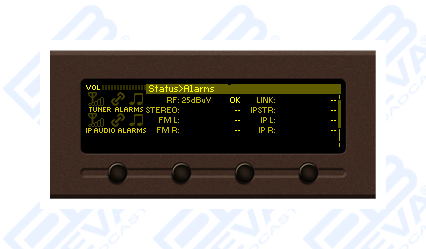

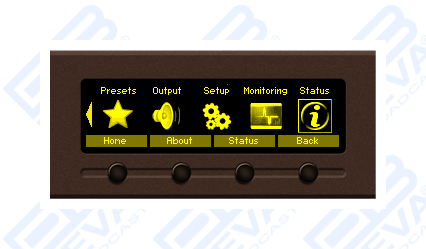

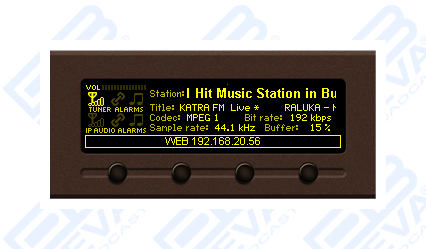

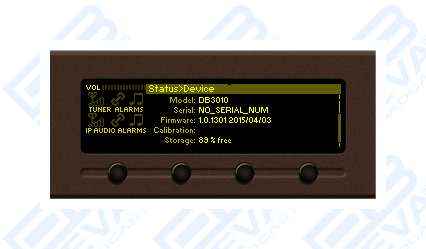

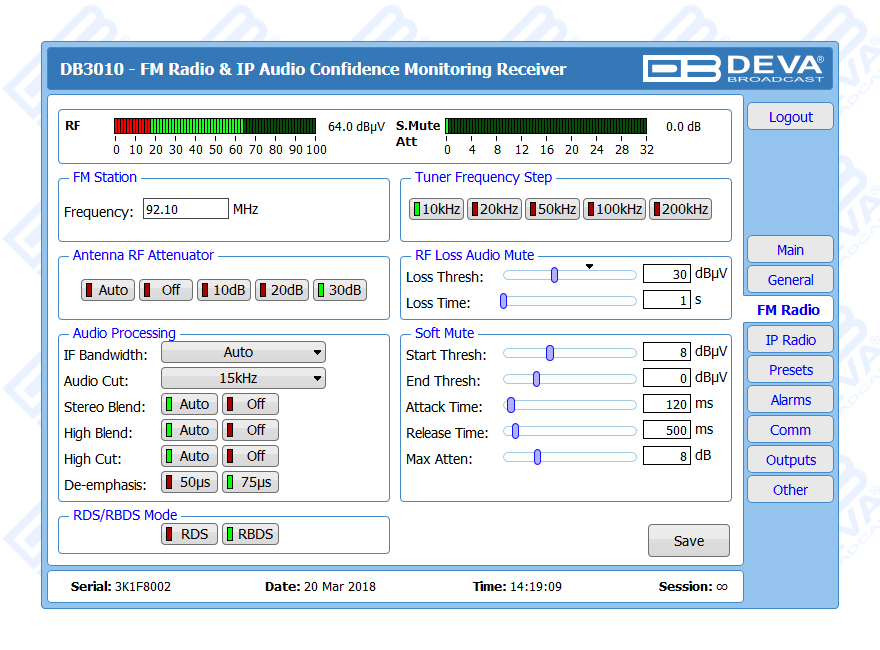

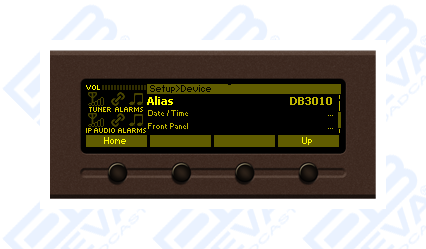

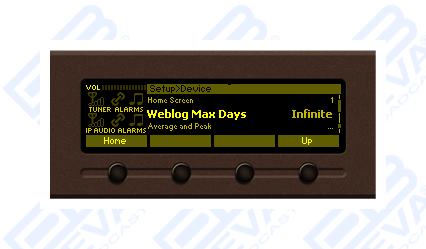

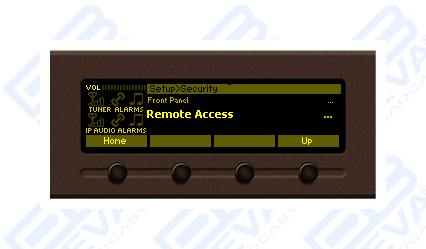

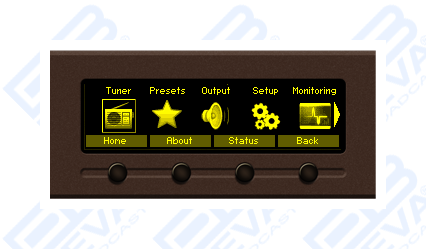

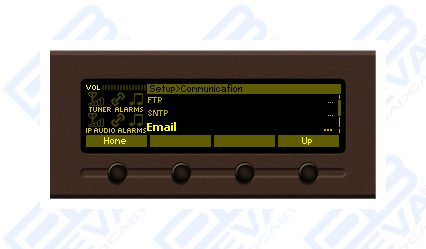

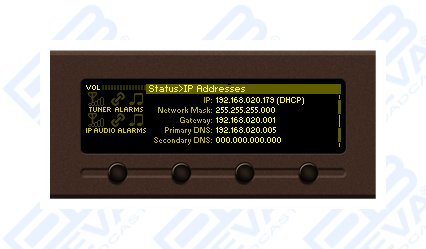

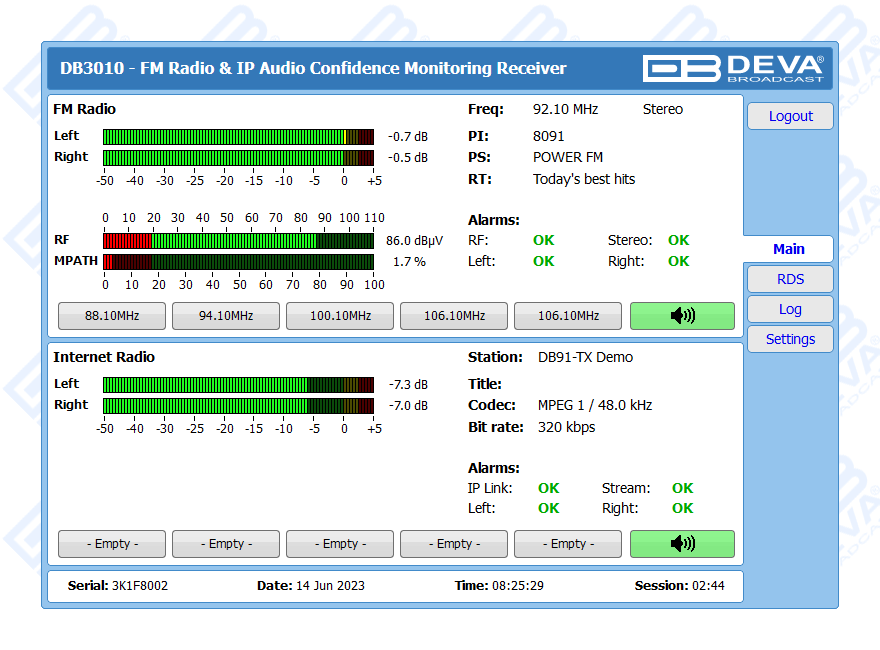

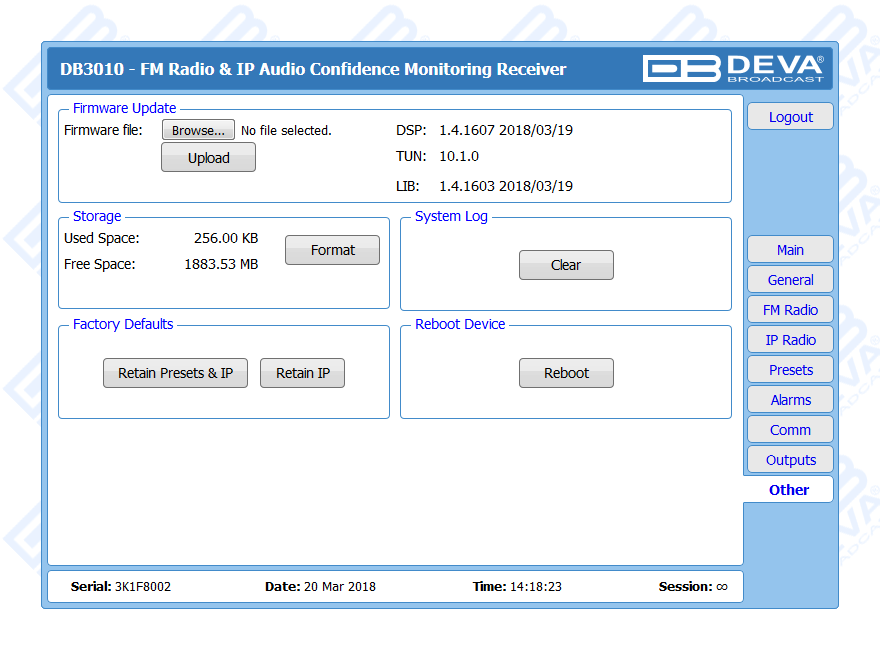

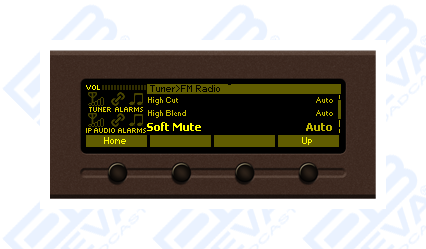

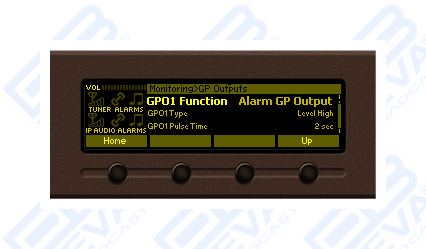

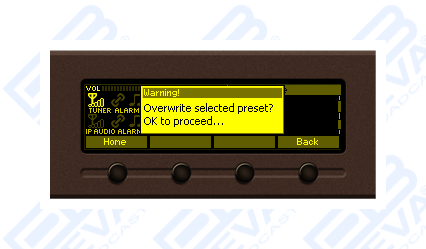

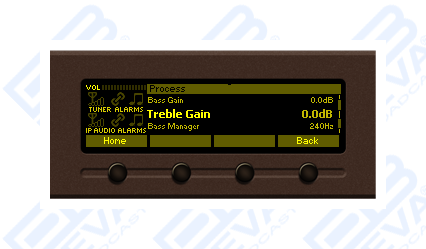

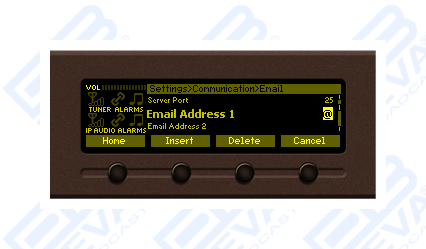

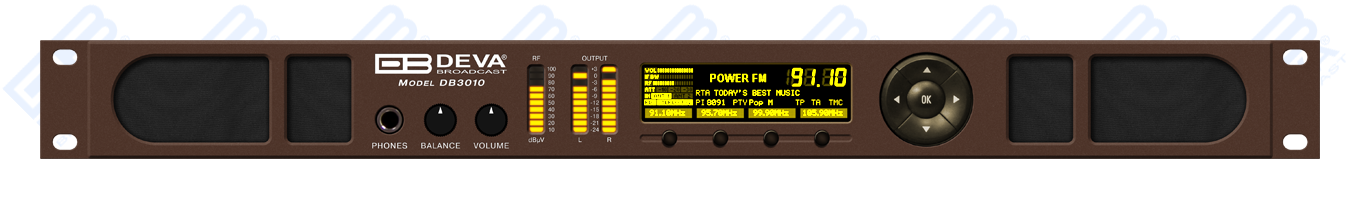

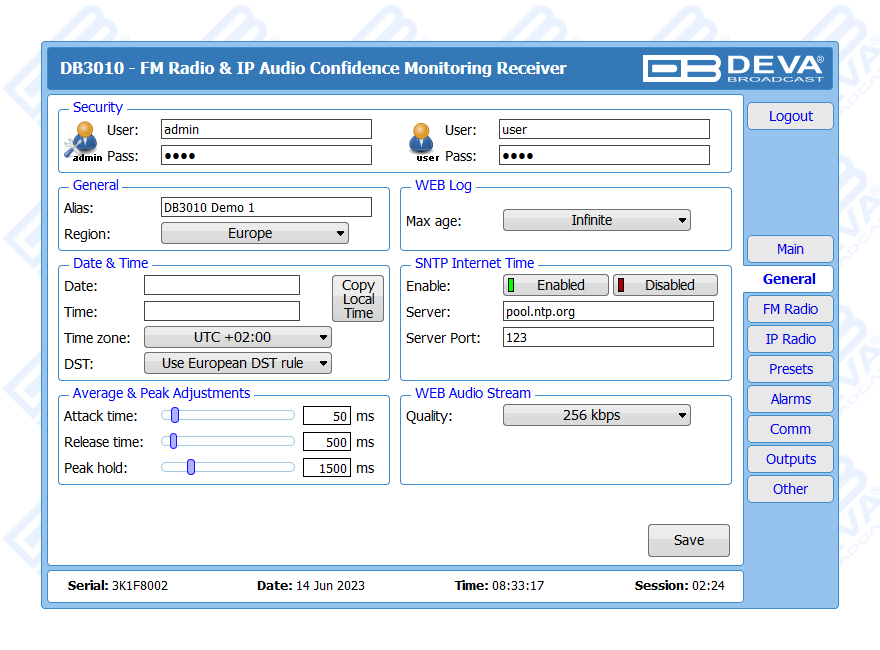

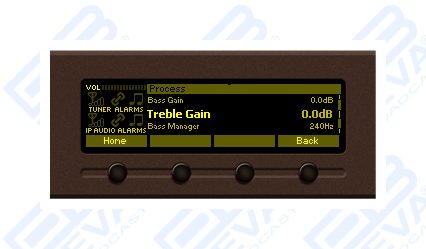

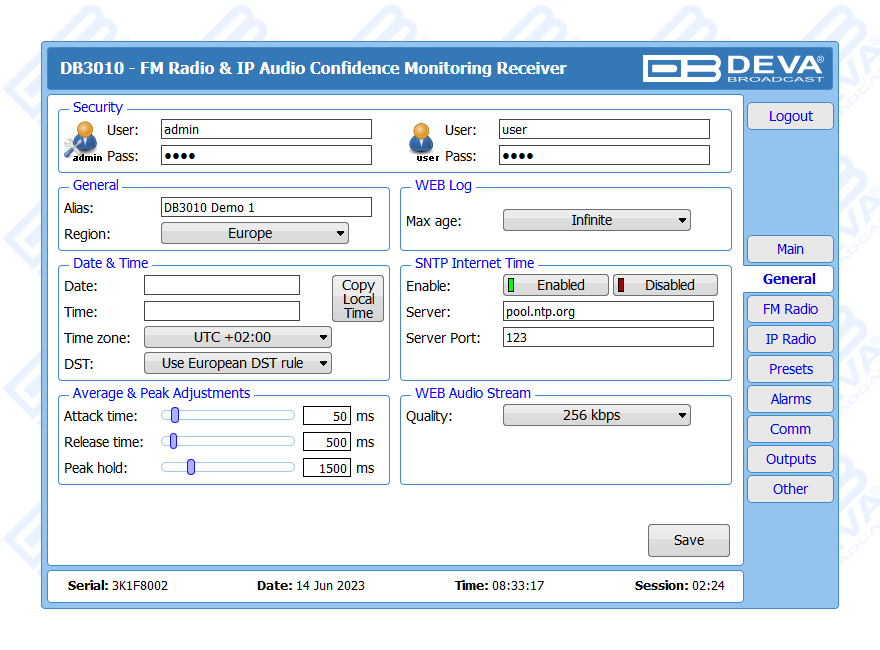

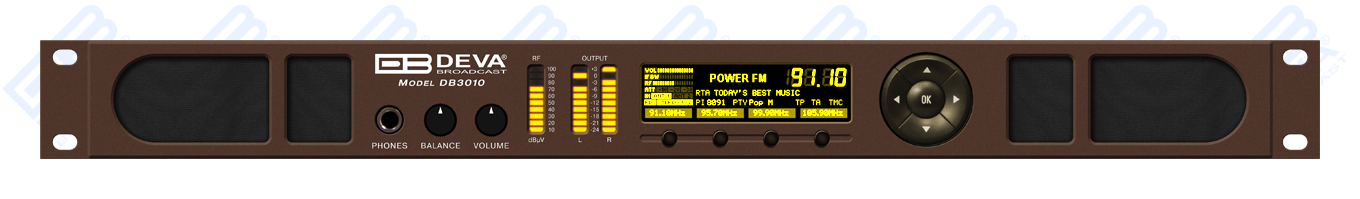

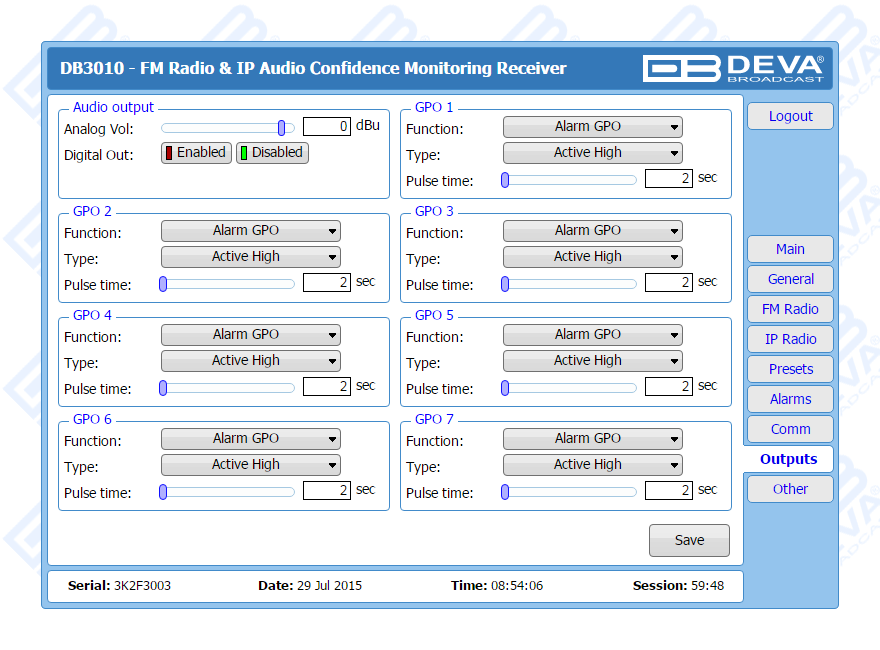

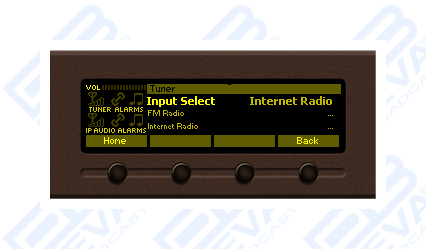

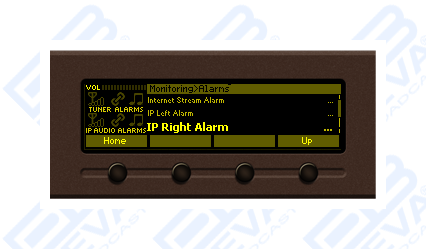

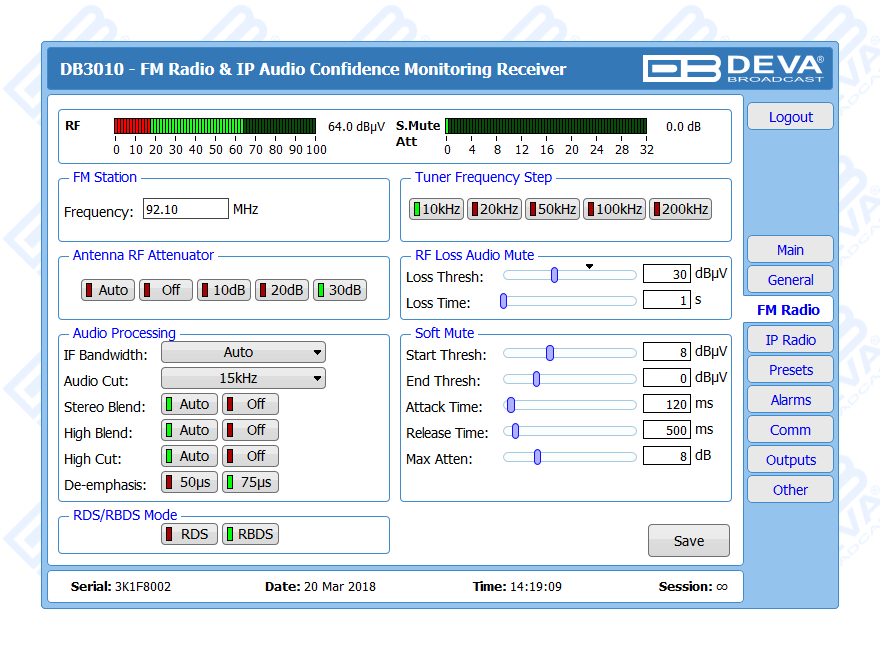

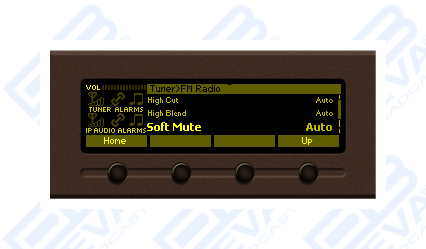

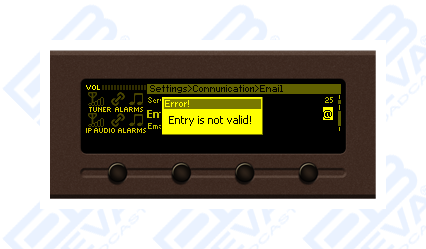

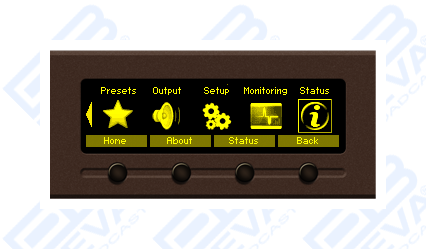

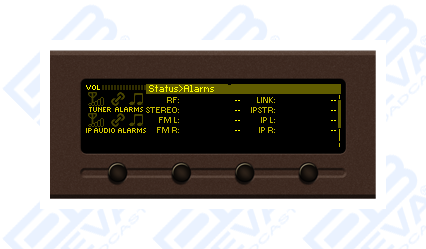

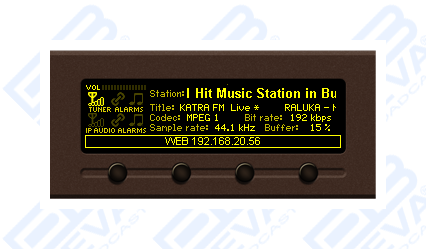

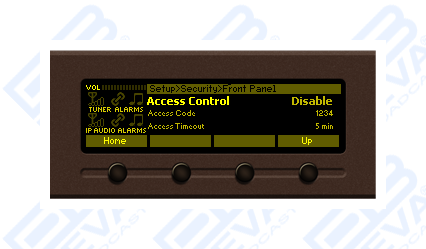

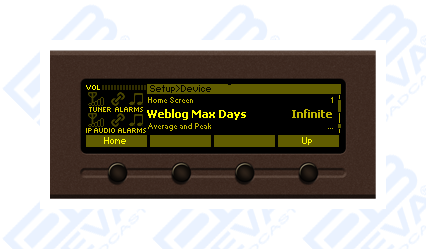

The DB3010 has easy to read, high-resolution OLED graphical display and three ultra-bright LED bargraph indicators that allow reading the main signal parameters at a glance. The intuitive front panel navigation menu and set of four soft buttons, allow easy navigation through the menus and quick access to DB3010’s various functions. The tool provides fast remote monitoring and setup. Its WEB interface is accessible with no more than a click and you will be able to listen to both the FM Station and the online stream. The setup and control of the unit could be done through your PC, tablet or smartphone via a standard web browser. All operating systems are supported without a compromise.

With its extensive set of features to match the latest trends, user-friendly control options and guaranteed 24/7 operation, DB3010 is the perfect asset for any radio station system.

IP Audio Player
Decoder/Supported formatsMPEG-1 Layer 3, raw PCM
Sample rates32, 44.1 and 48 kHz
Bit ratesAll standard bit rates, including VBR
Metadata decoderStation/Streamer’s ID, Song/Title (artist and title or program name), Quality (streaming rate, encoding format, mono or stereo and original sampling rate)
Stream clientShoutcast/Icecast compatible TCP/IP client
FM Radio Tuner
Tuning Range87.1 to 107.9 MHz, Frequency Agile
Tuning Step10, 20, 50, 100 kHz
Tuner Sensitivity≤ 10µV for 50dB monaural FM S/N
Antenna PortBNC Connectors, 50Ω
Internal Attenuator0, 10, 20 and 30 dB
Dynamic range100 dB
FM Demod
IF Filter BandwindthAdjustable from 10kHz to 150kHz
Frequency Response±0.1 dB, 10 Hz to 86 kHz
Dynamic range90 dB
Stereo Decoder
Frequency Response (L and R)±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo)60 dB, 50 µs de-emphasis
THD0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis
Stereo Separation50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis

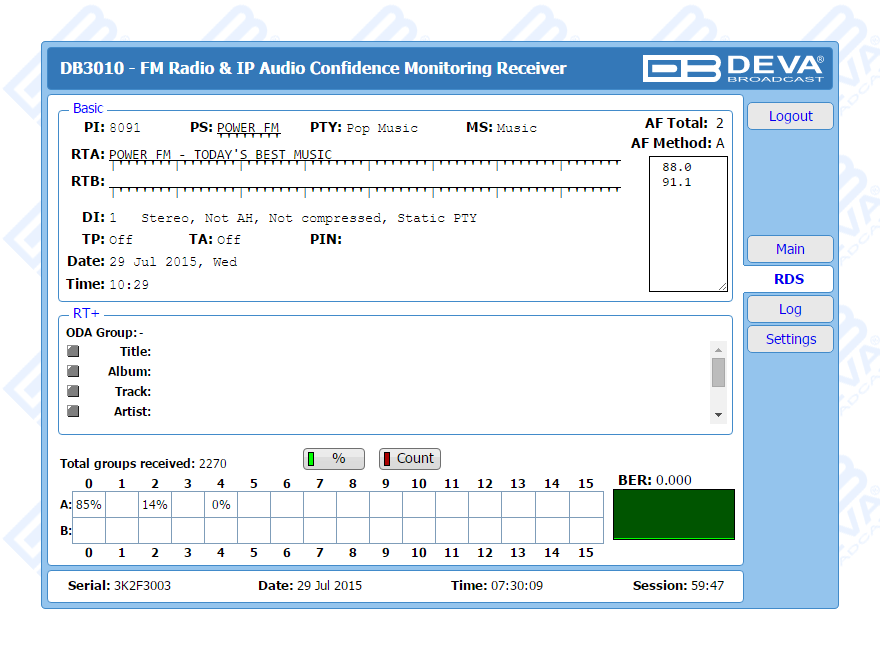

RDS Decoder
StandardsEuropean RDS CENELEC; United States RBDS NRSC
Error Correction & CountingYes
DecoderPI, PS, PTY, AF, RT, RT+, DI, MS, TA, TP, CT, ODA
Group AnalyzerYes
BER AnalyzerYes
Group Sequence DisplayYes
RDS RAW Data DisplayYes
Metering Accuracy
RF Level1%, 0 to 100 dBµV, 1dB resolution
Audio1%, +5.0 to -50.0 dB, 0.1 dB resolution
Amplifier & Loudspeakers
ConfigurationThree-way with stereo mid/ high-frequency drivers & mono low-frequency driver
Power Output2 x 6W (HF) + 12W (LF) with protective limiter
Crossover250Hz, 24dB/octave, Linkwitz-Riley
Distortion, HF Outputs< 0.1% - 1kHz, 3W output (below limit threshold)
Distortion, LF Output< 0.05% - 100Hz, 6W output (below limit threshold)
NoiseBetter than -72 dB below full output
Volume ControlMute to Full, Front panel, Rotary type
Balance Trim±32dB, Front panel, Rotary type
Peak Acoustic Level98dB SPL @ 2ft
Outputs
Analog Audio Outputs (L, R)+10 dBu, balanced XLR Connector
AES/EBU Output (L, R)5.0 Vp-p, 110Ω, balanced XLR Connector
AlarmsProgrammable terminals on rear panel, Optoisolated
Headphone6,3mm (1/4") Phone Jack

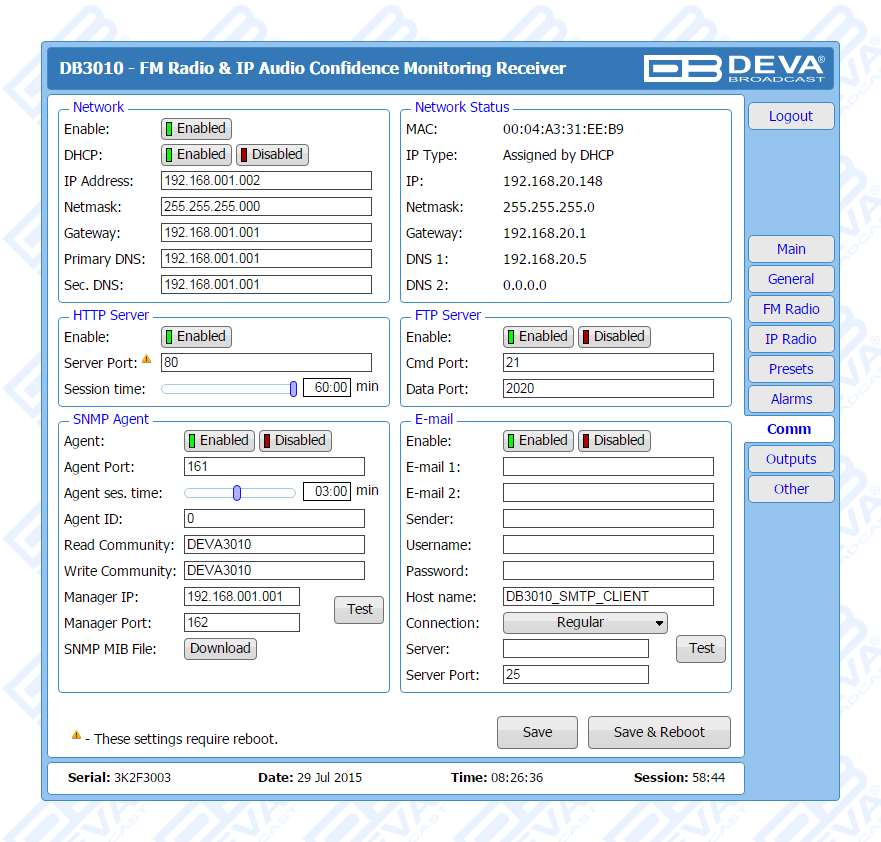

Network
ConnectorRJ-45
TypeEthernet
Device discoveryUPnP support
Measurements and Log Storage
Storage2GB Build-in Memory Card
Data formatText, CSV
Power Supply
Voltage100-240V / 50-60 Hz / 25W
ConnectorIEC320
Size and Weight
Dimensions (W;H;D)485 x 44 x 300 mm
Shipping Weight540 x 115 x 300 mm / 4.5kg
